카다로그 다운로드 Ultracool Mni Manual Ultracool Midi Manual
Cooling Water System with Ultracool Chiller LAUDA SHOWROOM 에서 장비 보기

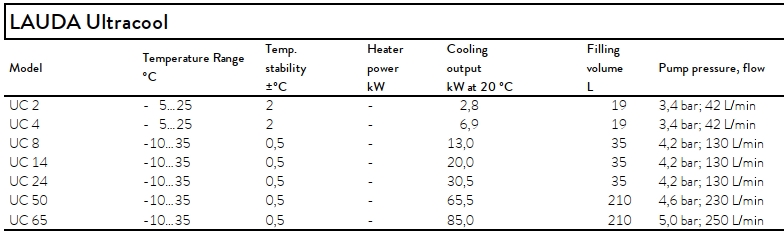

- ULTRACOOL 상세 내용 첨부 카다로그 참조
- Ultracool Mini : UC2 & UC4
- Ultracool Midi : UC8, UC14, UC24, UC50, UC65

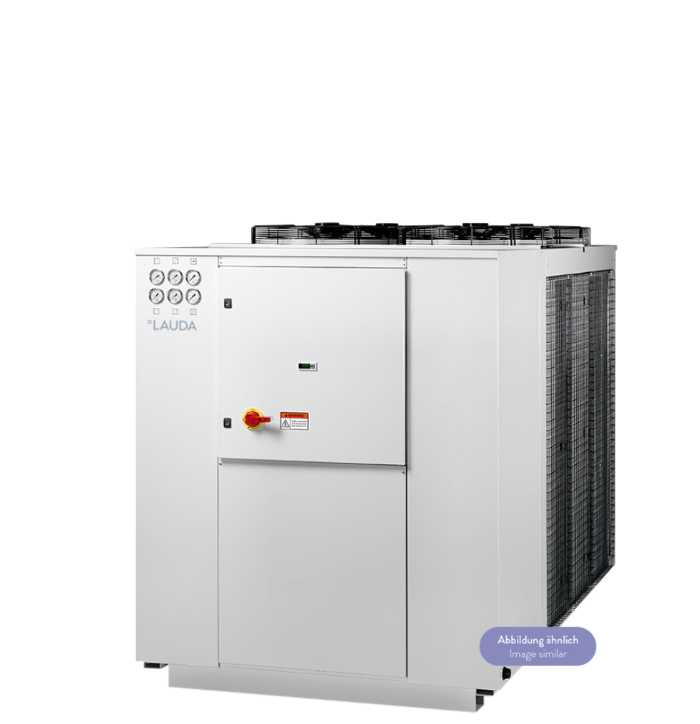

- Ultracool Maxi : UC80 & UC100 (2023 02월 출시)

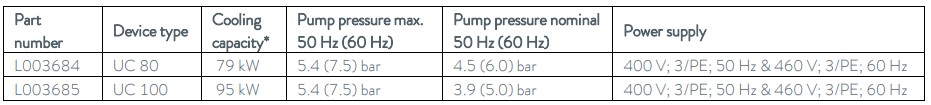

UC80 & UC100의 주요특징:
• Comply with European EcoDesign directive 2019/125/EC
• Energy-savings up to 50 % compared to traditional chillers
• Bifrequent power supply 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Increased working temperature range of -10…35 °C
• Significantly reduced footprint and dimensions
• Ethernet interface (with Modbus TCP/IP protocol) as standard
• Outdoor installation (IP 54) as standard
• Integrated phase detector
• Remote operation via integrated web server
• Remote control with cable
