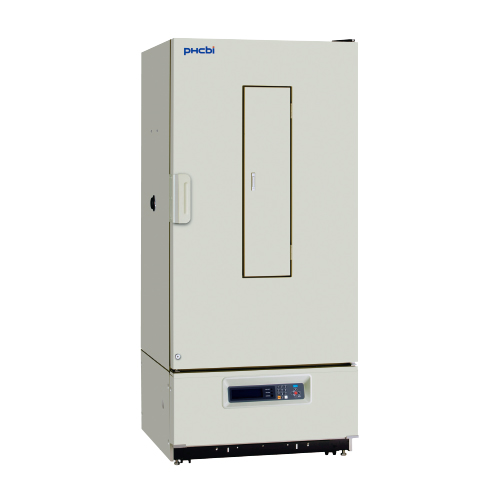

PHCbi MIR-554
[리퍼 할인 제품(21년 시리얼)]
Features
만능성능
406리터 용량의 MIR-554 냉각 인큐베이터는 -10ºC ~ +60ºC 환경을 요구하는 광범위한 응용 분야에 적합한 탁월한 장치로 인정받고 있습니다. 연구, 환경 연구 및 테스트에 필수적인 다양한 온도 및 조명 패턴을 이제 정확하게 재현하고 제어할 수 있습니다.
다음의 링크에서 MIR-554 이외에 동일 사양의 저온 인큐베이터인 또 다른 2가지 사이즈의 하기 모델을 확인 하실 수 있습니다. :
장점
- Programmable with 12 step, 10 program capability.
- Wide temperature range from -10ºC to +60ºC with excellent uniformity.
- Multi-purpose for a wide range of applications from the food industry to water treatment and microbiology.
- Precise Temperature Control For Accurate, Repeatable Conditions.
- Chamber temperature uniformity ±0.5°C.
- Energy Saving Operation.
- Ultimate Secure, Comprehensive Alarm System.
- Modern Design for Exceptional Usability.
- Ultimate Security and Sample Safety.
특징
- High precision microprocessor controller combined with a heater P.I.D. and compressor On-Off system.
- Wide temperature range settable from -10°C to +60°C with control up to ±0.1°C.
- Chamber temperature uniformity ±0.5°C.
- Energy Saving Operation.
- Intelligent LCD Controller.
- Automatic Setting Temperature Alarm.
- Independent Over-temperature Protection Device.
- Programmed Memory Back-up Mechanism.
- Automatic Return Buzzer Switch.
- Key Lock.
- Trouble Monitor (Self Diagnostic Function).

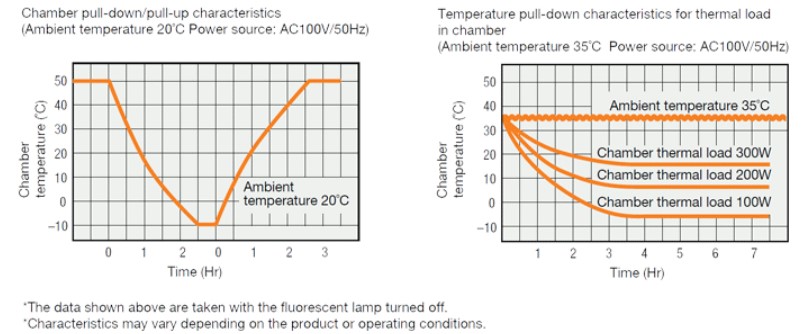

Performance
Specifications
| External Dimensions (W x D x H) | 800 x 832 x 1810 mm |
| Internal Dimensions (W x D x H) | 640 x 550 x 1160 mm |
| Volume | 406 litres |
| Net Weight | 195 kg |
| Temperature Control Range | -10°C ~ +60°C (AT +5°C ~ +35°C, no load) |
| Temperature Fluctuation | ±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load) |
| Temperature Uniformity | ±0.5 (SV 37°C, Ambient Temp 20°C, No load) |
| Controller | Microprocessor PID System (ON-OFF control when compressor operates) |
| Display | LCD |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced air circulation |
| Compressors | 250 W |
| Refrigerant | |
| Insulation Material | PUF |
| Insulation Thickness | 80 mm |
| Exterior Material | Painted steel |
| Interior Material | SS SUS-304 |
| Outer Doors | |
| Outer Door Lock | |
| Reversible Door | |
| Inner Doors | |
| Shelves | |
| Max. Load Per Shelf | 50 kg |
| Max. Total Load | 250 kg |
| Access Port | |
| Access Port Position | left and right side |
| Access Port Diameter | 40 |
| Interior Fluorescent Lamp | 1, 15 W, with MIR-L152 option |
| Power Failure | - |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 45 dB |

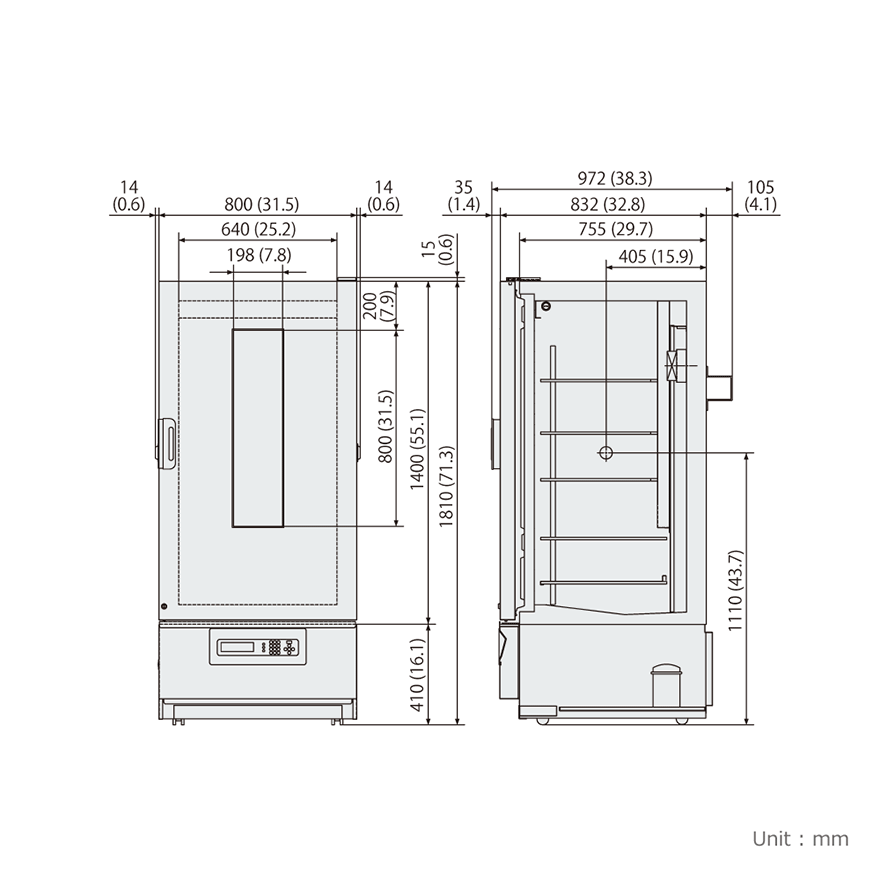

Dimensions
