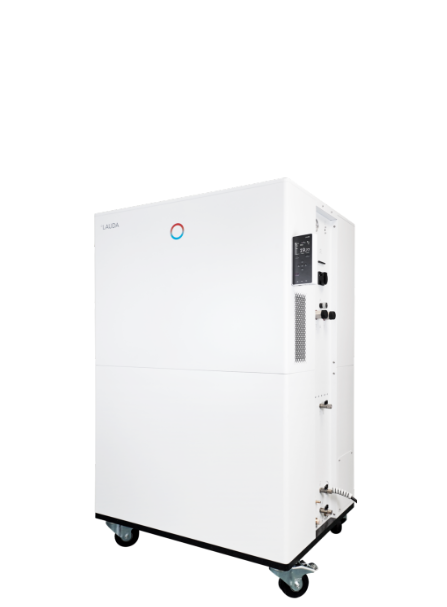

IN2050PW & IN2560PW
통합 공정 온도 조절기
압력이 중첩된 Integral P 프로세스 온도 조절 장치로 실제 테스트 프로세스를 위한 전문적인 온도 제어!
새로운 Integral P 프로세스 온도 조절기는 압력 중첩의 원리로 작동합니다.
스테인리스 스틸 압력 용기가 장착된 이 장치는 불연성 열 전달 매체의 온도 범위를 크게 확장합니다.
따라서 새로운 Integral P 프로세스 온도 조절 장치를 사용하면 유리한 운영 비용으로 실제 조건에서 드라이브 시스템 또는 스트레스 테스트를 테스트할 수 있습니다.

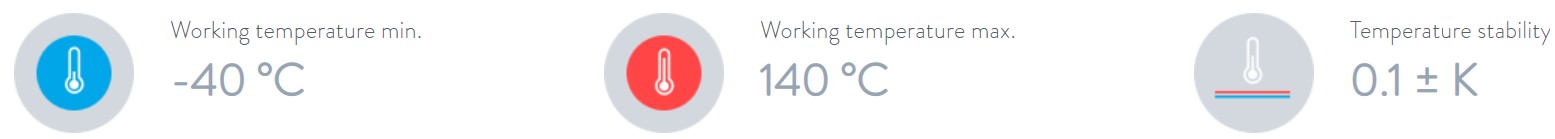

통합 P 프로세스 온도 조절기는 -40 ~ 140°C의 작동 온도 범위에서 작동하며 냉각 용량은 20kW 또는 25kW입니다.
통합 P 프로세스 온도 조절 장치에는 -0.2bar의 음압을 통해 온도 제어 매체를 온도 제어 장치로 끌어들이는 압축 공기 공급 장치가 장착되어 있습니다. 새로운 세대의 모든 Integral 장치와 마찬가지로 Integral P 프로세스 온도 조절기는 사용자 프로세스의 최대 유연성을 위해 모듈식 인터페이스 개념을 사용합니다.

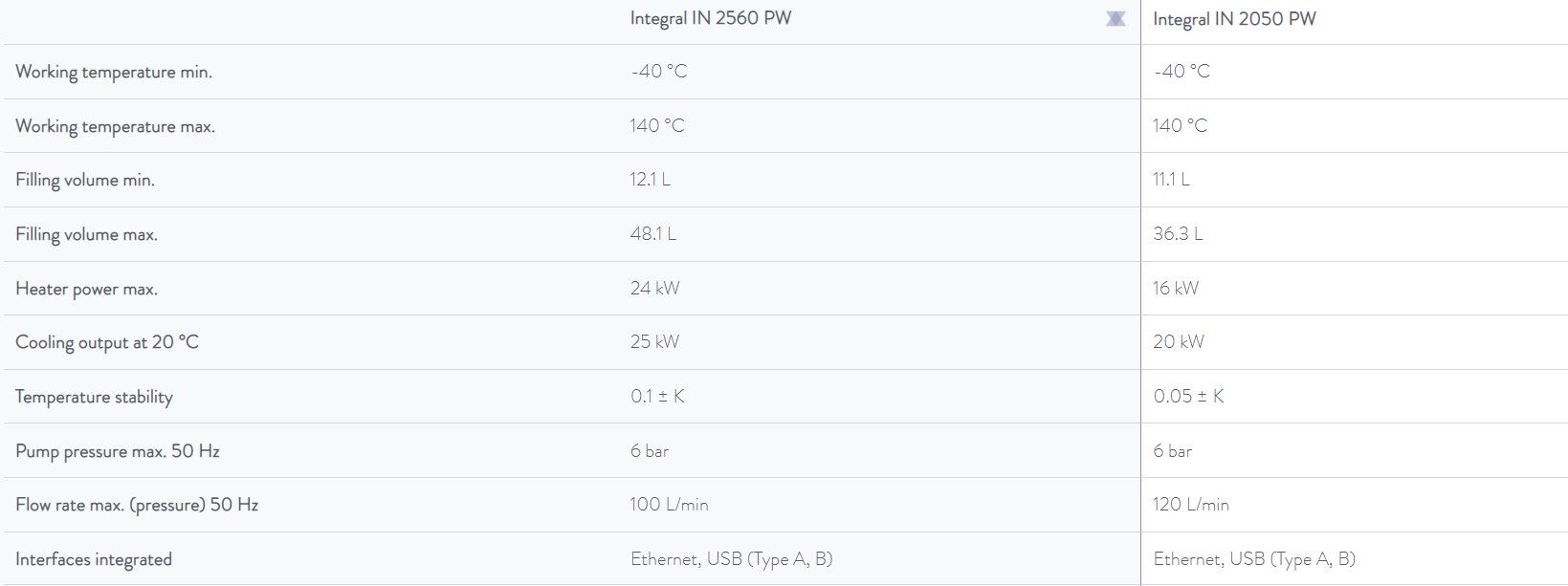

IN2050PW Data Sheet IN2560PW Data Sheet

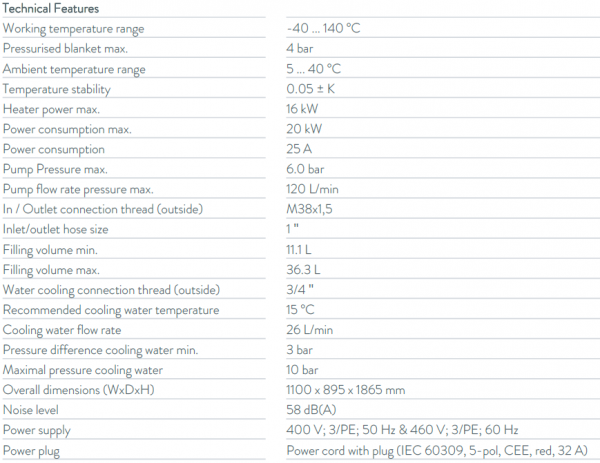

1) LAUDA Integral IN 2050 PW
특징
- Process thermostat for pressurised operation with integrated cooling system for dynamic temperature control within external circuitsFor use with non-flammable liquids
- SelfCheck Assistant for system diagnosis
- Fully electronic continuous controller with PID action for internal & external control
- Self adapt function for determination of control parameters
- Low-level and adjustable over-temperature protection with acoustic alarm
- Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
- Programmer with 150 temperature/time segments that can be separated into 5 programs
- Filling by using compressed air or a drum pump
- SmartCool system for energy-saving digital cooling management including compressor on-off control
- Condenser cooling Water

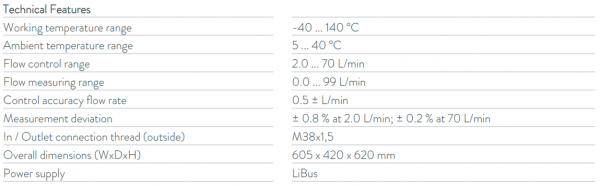

2) Flow Control MID 80
*Flow control 제품은 Lauda Integral XT 제품하고만 연결이 가능합니다.
Features
• Flow control system with magnetic inductive measurement principle
• Premitted heat transfer liquids: water/glycol mixtures
• User-interface allows setting and control of the temperature control unit
• Use in pressurized temperature control units up to max. 140 °C
• Use in open or cold-oil overlay systems up to max. 90 °C
• The maximum controllable volume flow is dependent on the maximum flow rate of the temperature control unit in the application
• With certificate of calibration
• Movable on wheels
• Power supply via LAUDA internal Bus-socket of temperature control unit
• 자기 유도 측정 원리를 이용한 유량 제어 시스템
• 미리 방출된 열 전달 액체: 물/글리콜 혼합물
• 사용자 인터페이스를 통해 온도 제어 장치의 설정 및 제어 가능
• 최대 140 °C까지 가압 온도 제어 장치에 사용
• 최대 90°C까지 개방 또는 저온 오일 오버레이 시스템에서 사용
• 제어 가능한 최대 체적 유량은 애플리케이션의 온도 제어 장치의 최대 유량에 따라 달라집니다.
• 교정승인서 포함
• 이동 가능한 휠
• LAUDA 내부 온도 제어 장치 버스 소켓을 통한 전원 공급
