Features
콤팩트 디자인의 이동형 멸균기
Large-mouth 370mm-diameter chamber capacity with small installation space.
Surprisingly large chamber
Despite the compact outer dimensions of these autoclaves, they store 8 (MLS-3751/ 3751L) or 12 (MLS-3781/3781L) 1,000ml flasks. The MLS-3751/3751L has two baskets, and the larger MLS-3781/3781L has three.
Compact design, swing-up lid for easy access
Both Panasonic models can be easily installed in minimal space. A swing-up lid provides effortless access for loading and unloading test tubes, flasks and lab instruments.
Voice Guidance Function Increases Safety to Prevent Operating Mistakes and Increase Carefulness.
Standard mode
For safe use of the product, precautions and operating instructions are given by voice guidance.
Warning mode
If a safety device is activated during use and the product stops operation, the voice guidance will inform users of verification/inspection items. In addition, messages urging periodic maintenance are also provided.
Newly Designed Handle Lets Users Open and Close the Lid Easily with One Hand.
The conventional slide handle has been completely redesigned to develop a hand-pull system that enables easy opening/closing by gripping with one hand. In addition, the cover is equipped with a scalding prevention guard to prevent scalding due to steam.
Plus a Wealth of Other Important Features
Standard mode
Functions for user safety and cooling fan/exhaust level adjustment to reduce cooling time.
Conforming to the requirements of IEC standards, when using sterilizing liquid the temperature when opening the cover is set to 65°C or less.
In addition, by adding exhaust holes at several positions on the side of the product and positioning the standardequipment cooling fan under the chamber, cooing efficiency and sterilizing efficiency are increased, so that operating time can be reduced. Furthermore, a constant open/close interval (with 5-step adjustment) for the exhaust process valve enables selection of the exhaust rate for steam inside the chamber to enable cooling in a shorter time while reducing exhaust time and preventing boiling over of sterilizing liquid.
Thermal printer (optional)
The work conditions shown on the control panel (temperature/pressure inside chamber, sterilizing course, time) can be printed out by a line thermal dot printer for record-keeping, management, and storage.
Microprocessor temperature control
Sterilizing temperature is controlled to within +2°C/-0°C of the set temperature in the range of 115°C to 135°C.
Air vent control
Can be set to allow automatic release after sterilizing is completed.
Features
- Compact design, swing-up door for easy access
- Surprisingly large chamber
- Alarm & safety devices
- Micorprocessor temperature control
- Innovative voice guidance function
Specfications

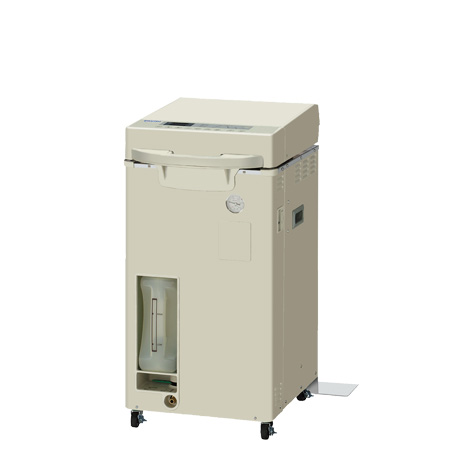

| Model | MLS-3781 |
|---|---|
| External Dimensions | 478 x 632 x 965 (mm) / 18.8 x 24.9 x 38.0 (inch) |
| Effective Capacity | 75 liters (2.6 cu.ft.) |
| Chamber Dimension | ø 370 x 630 (mm) / ø 14.6 ” x 24.8 (inch) Effective chamber height including recess in lid : 688 mm (27.1 inch) |
| Chamber Material | SUS 304 (Austenitic stainless steel) |
| The Lid | - |
| Sterilization Temperature | 115 °C to 135 °C |
| Culture Medium Melting Temperature | 60 °C to 114 °C |
| Keep Warm Temperature | 45 °C to 60 °C |
| Temperature Display | - |
| Pressure Gauge | - |
| Max. Pressure | 0.240 MPa [34.8 psi] |
| Safety Valve Release Pressure | - |
| Sterilization Timer | 1 minute to 300 minutes |
| Keep Warm Timer | 72 hrs. fixed |
| Program Timer | 1 week (Designation: Year, month, day, hour and minute) |
| Time Sterilization | - |
| Time Heat Insulation | - |
| Casters | - |
| Water Injection | - |
| Water Drainage | - |
| Exhaust Tank | 2 -liter polyethylene tank |
| Safety Device | Pressure safety valve, over-temperature limiter, anti-scorch limiter, door interlock, over-pressure limiter, current fuse |
| Power Consumption | 4 kW |
| Net Weight | 71 kg (157 lbs.) |
| Accessories | Stainless steel baskets – Large: 2, small: 1 Drain hose: 1, Exhaust tank: 1, tank mounting bracket: 1 and tip-resistant metals: 2 |
| Effective chamber height including recess in lid | 688 mm (27.1 inch) |
| Exhaust Control | Exhaust valve open temperature setting |
- •Appearance and specifications are subject to change without notice.
- *1 Exterior dimensions of main cabinet only - see dimension drawings showing handles and other external projections.
