까다로운 실험실의 요구에 부흥하는 온도 안정성의 대용량 의료용 냉장고
Stable Temperature environment is important for the storage of your precious drugs and samples. However, household refrigerators do not offer a stable temperature environment due to relatively simple construction. Panasonic Pharmaceutical refrigerators employ a forced air circulation and sophisticated plenum systems to realize a uniformed temperature throughout the chamber.
Inside Temp. of Household Refrigerator
- Typical Cooling System of Household Refrigerator -
A conventional auto defrost system turns on the defrost heater every 7 - 8 hours. During this, the chamber air temperature raises.

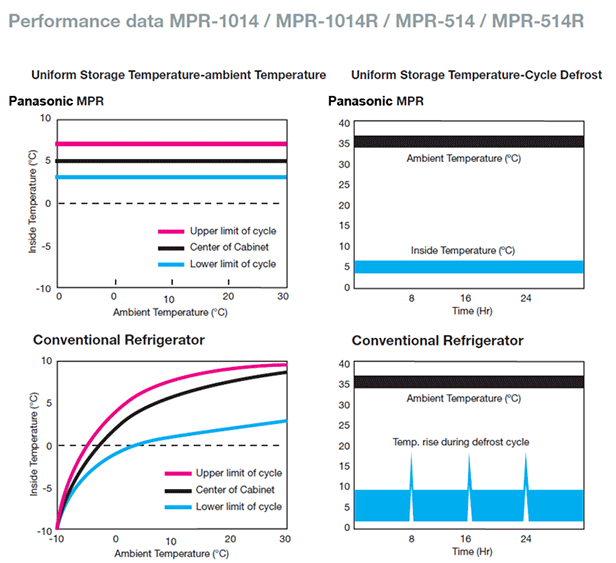

Temperature Stability - Temperature Uniformity
- Multi air-flow plenum cooling system -
Panasonic cycle defrost system turns on the defrost heater each off period of the compressor. Each defrost period is very short and unnoticeable.
The ergonomic design of the MPR series refrigerators provides a clear view of stored items through the large framed windows. The slim profile allows for easy-reach retrieval of your products. Users can choose from two types to suit their needs; one with all wire shelves or one with sliding racks on one side.
Double-sensor temperature management
The double-sensor control system with alarm-exclusive sensor added to the temperature control sensor always monitors the precise chamber temperature.
Safety is a Panasonic standard
Even the best designed refrigerator must be prepared for the unexpected.
- Cabinet construction
- Control safety devices
- Comprehensive alarms
Worry-free cycle defrosting system
With Panasonic’s cycle defrost system, defrosting is performed automatically during compressor “off” cycles, and by sensing frost levels. This way defrosting is performed only when required, further protecting the contents against unnecessary temperature rise. The defrosting heater also acts as an emergency heat source to prevent samples from freezing.
HFC refrigerant & HCFC-free insulation
Panasonic biomedical equipment is designed for low environmental impact. The MPR-514 and 1014 series use HFC refrigerant and the foamed-in-place insulation is HCFC free.
Data Acquisition System (optional) The Data acquisition system enables remote monitoring of pharmaceutical refrigerators.

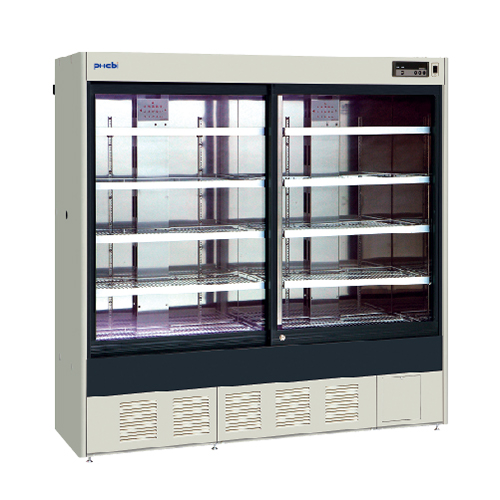

Standard Type with Large Cabinet
- Stable, uniform and controlled cabinet temperature is unaffected by ambient temperature
- Cycle defrost with heater allows defrosting without rise in cabinet temperature

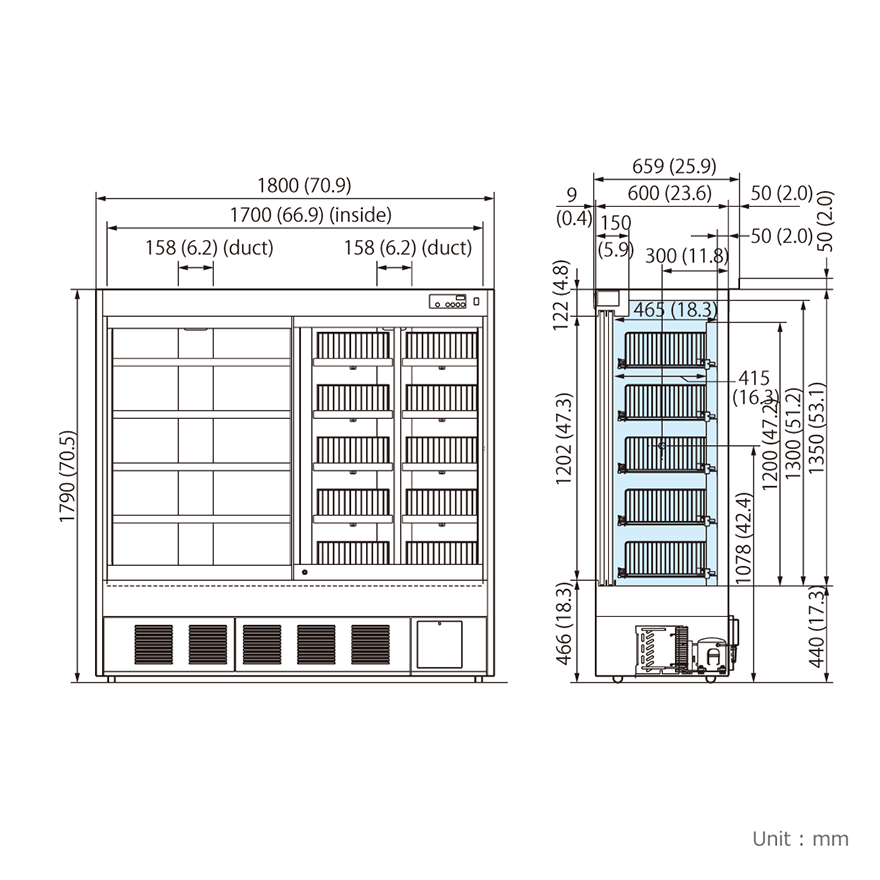

|External Dimensions||1800 x 600 x 1790 (mm) / 70.9 x 23.6 x 70.5 (inch)|
|Internal Dimensions||1700 x 465 x 1300 (mm) / 66.9 x 18.3 x 51.2 (inch)|
|Effective Capacity||1033 liters (36.4 cu.ft.)|
|External Cabinet||Galvanized steel with baked on finish|
|Internal Cabinet||Stainless steel|
|Outer Door||2 sliding doors, Double layer glass with heat reflection film|
|Insulation||Rigid polyurethane foamed-in-place (HCFC free)|
|Shelves & sliding racks||10 polyester-coated wire shelves Load: 50 kg per shelf|
|Outer door lock||1|
|Cooling method||Forced cool air circulation|
|Compressor||Hermetic type, output: 250 W|
|Evaporator||Fin and tube|
|Condenser||Fin and tube|
|Defrosting||Forced type, fully automatic|
|Defrost Heater||141 W|
|Temperature control||2 °C to 14 °C (Ambient temperature - 5 °C to 35 °C)|
|Condenser||Fin and tube|
|Net weight||246 kg (542 lbs)|
