PT 3100 D

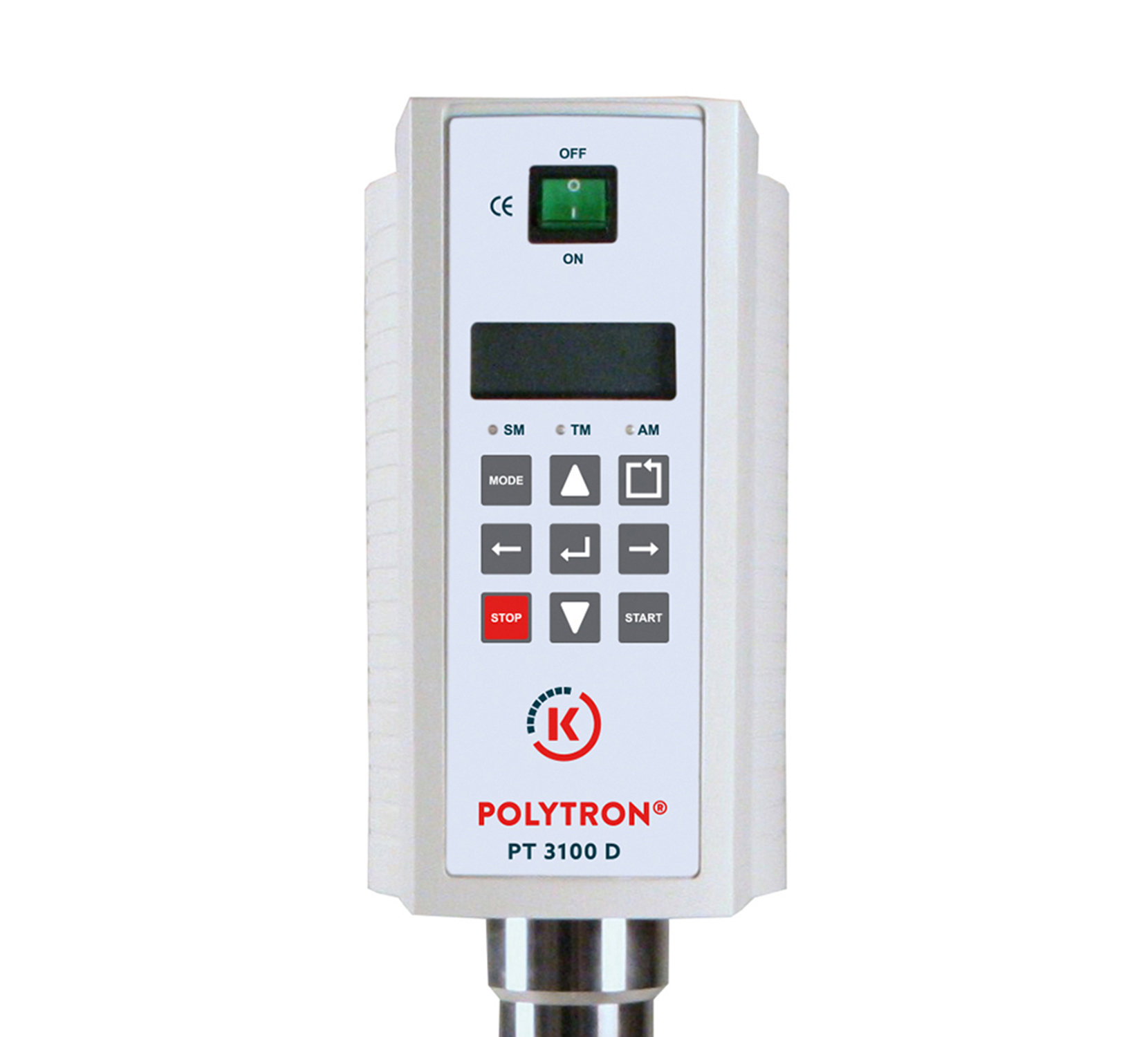

POLYTRON® PT 3100D Stand Dispersion Unit (High End Line)« Application volumes 0.1 ml to 10 litres »

The PT 3100 D dispersion unit is unique in its class. Applications with highest demands on reproducibility or requiring a scale-up step are excellently served by this unit. The complete digitalised control and regulating system can be easily operated using the membrane keyboard. The bright and informative display shows all parameters. Via PC interface, diverse parameters such as speed profile or times can be specified using the enclosed KIN software. Results can be recorded as an Excel file. Up to 30 dispersion aggregates with different geometries, design sizes, materials and coatings are available for selection.

ADVANTAGES
  • Powerful 1200 Watt motor
  • Motor speed controllable from 500 to 30,000 RPM
  • Peripheral speeds up to approx. 32 m/s
  • Soft start (e.g., for pre-selected speed)
  • Integrated overheating, overload and blocking protection
  • Speed stability in the case of viscosity changes
  • Simple operating concept using membrane keyboard
  • Selection of three operating modes: standard, timer, auto
  • PC interface (RS232) for control via KIN software
  • Integrated overheating and blocking protection
  • Aggregate replacement using one-handed quick-release coupling (type E)
  • Sound-insulated housing
  • Comprehensive aggregate portfolio with easy cleaning in Easy Clean design


Digital display for showing different process parameters and messages

  • Target speed [TS, RPM]
  • Actual speed [AS, RPM]
  • Power input [Pin, W]
  • Power output [Pout, W]
  • Torque [M, Ncm]
  • Motor current [I, A]
  • Voltage supply [U, V]
  • Product temperature (with optional Pt100 temperature probe) [TP, °C]
  • Internal controller temperature [Tc, °C]
  • Operating hour counter [Oh, h]

Accessories

In order to combine work and ergonomics, we recommend our stands with vessel holders or anti-slip mats.
To complete our portfolio, we offer diverse glass dispersion vessels in flow-breaking designs. Accessories for this drive.
Dispersing-Aggregates

11030297 PT-DA 05/2EC-F078
11030298 PT-DA 07/2EC-F101
11030299 PT-DA 12/2EC-F154
11030300 PT-DA 12/2MEC-F154
11030301 PT-DA 12/2WEC-F154
11030302 PT-DA 20/2EC-F193
11030303 PT-DA 20/2MEC-F193
11030304 PT-DA 20/2WEC-F193
11030294 PT-DA 20/WG-F210
11030305 PT-DA 30/2EC-F250
11030306 PT-DA 30/2G-F273
11030307 PT-DA 30/2MEC-F250
11030308 PT-DA 30/2MG-F273
11030309 PT-DA 30/2WEC-F250
11030310 PT-DA 30/2ZEC-F250
11030311 PT-DA 30/4EC-F250
11030312 PT-DA 30/4G-F273
11030344 PT-DA 30/DS-F250 (Dissolver)
11030313 PT-DA 36/2EC-F250
11030314 PT-DA 36/BEC-F250 (BIOTRONA)
11030315 PT-DA 36/2MEC-F250
11030316 PT-DA 36/2G-F273
11030317 PT-DA 36/4EC-F250
11030318 PT-DA 36/4G-F273
11030319 PT-DA 36/2WEC-F250

Accessories

11040025 Stand, ST-F10/600
11040025 Stand, ST-P14/590+500
11050010 GS 15 Glass vessels without cover, working capacity max. 35 ml
11050011 GS 25 Glass vessels without cover, working capacity max. 150 ml
11050012 GS 40 Glass vessels without cover, working capacity max. 500 ml
11050012 GS 50 Glass vessels without cover, working capacity max. 900 ml
11050014 GS 60 Glass vessels without cover, working capacity max. 1300 ml
11051020 GS 15K Glass vessels with cover, working capacity max. 35 ml
11051021 GS 25K Glass vessels with cover, working capacity max. 150 ml
11051022 GS 40K Glass vessels with cover, working capacity max. 500 ml
11051023 GS 50K Glass vessels with cover, working capacity max. 900 ml
11051024 GS 60K Glass vessels with cover, working capacity max. 1300 ml
11051030 GS 15KL08 Glass vessels with feedthrough, working capacity max. 35 ml
11051031 GS 15KL12 Glass vessels with feedthrough, working capacity max. 35 ml
11051040 GS 25KL12 Glass vessels with feedthrough, working capacity max. 150 ml
11051041 GS 25KL20 Glass vessels with feedthrough, working capacity max. 150 ml
11051050 GS 40KL20 Glass vessels with feedthrough, working capacity max. 500 ml
11051051 GS 40KL26 Glass vessels with feedthrough, working capacity max. 500 ml
11051060 GS 50KL20 Glass vessels with feedthrough, working capacity max. 900 ml
11051061 GS 50KL26 Glass vessels with feedthrough, working capacity max. 900 ml
11051070 GS 60KL20 Glass vessels with feedthrough, working capacity max. 1300 ml
11051071 GS 60KL25 Glass vessels with feedthrough, working capacity max. 1300 ml
11052201 GS 100-1.C.B. Steel dispersing vessels with baffle part, working capacity max. 1000 ml
11052202 GS 100-2.C.B. Steel dispersing vessels with baffle part, working capacity max. 2000 ml
11052203 GS 100-3.C.B. Steel dispersing vessels with baffle part, working capacity max. 3000 ml
11052204 GS 100-4.C.B. Steel dispersing vessels with baffle part, working capacity max. 4000 ml
11052205 GS 100-5.C.B. Steel dispersing vessels with baffle part, working capacity max. 5000 ml
11052206 GS 100-6.C.B. Steel dispersing vessels with baffle part, working capacity max. 6000 ml
11052208 GS 100-8.C.B. Steel dispersing vessels with baffle part, working capacity max. 8000 ml
11052210 GS 100-10.C.B. Steel dispersing vessels with baffle part, working capacity max. 10000 ml
11052001 GS 100-1 Steel dispersing vessels without cover, working capacity max. 1000 ml
11052002 GS 100-2 Steel dispersing vessels without cover, working capacity max. 2000 ml
11052003 GS 100-3 Steel dispersing vessels without cover, working capacity max. 3000 ml
11052004 GS 100-4 Steel dispersing vessels without cover, working capacity max. 4000 ml
11052005 GS 100-5 Steel dispersing vessels without cover, working capacity max. 5000 ml
11052006 GS 100-6 Steel dispersing vessels without cover, working capacity max. 6000 ml
11052008 GS 100-8 Steel dispersing vessels without cover, working capacity max. 8000 ml
11052010 GS 100-10 Steel dispersing vessels without cover, working capacity max. 10000 ml
11052101 GS 100-1.C. Steel dispersing vessels with cover, working capacity max. 1000 ml
11052102 GS 100-2.C. Steel dispersing vessels with cover, working capacity max. 2000 ml
11052103 GS 100-3.C. Steel dispersing vessels with cover, working capacity max. 3000 ml
11052104 GS 100-4.C. Steel dispersing vessels with cover, working capacity max. 4000 ml
11052105 GS 100-5.C. Steel dispersing vessels with cover, working capacity max. 5000 ml
11052106 GS 100-6.C. Steel dispersing vessels with cover, working capacity max. 6000 ml
11052108 GS 100-8.C. Steel dispersing vessels with cover, working capacity max. 8000 ml
11052110 GS 100-10.C. Steel dispersing vessels with cover, working capacity max. 10000 ml

Technical data
Application volume (ml) min (water)0.1 ml
Application volume (ml) max (water)10'000 ml
Motor input power (W)1200 W
speed range (rpm/min-1)500-30'000
supply voltage (V)230 V ± 10%, 50 Hz
supply voltage (V)110 - 120 V ± 10%, 60 Hz
InterfaceRS 232
Speed display (digital / scale)Digital
Speed display (digital / scale)stepless
Sound Level (dB A) (drive only at 25,000 min-1)66 dBA
Sound Level (dB A) (drive only at 30,000 min-1)73 dBA
Relative humidity max. (%) Storage80 %
Relative humidity max. (%) Operating80 %
Operating ambient temperature (° C)0 to 40 °C
Protection class according to DIN (IP)IP 20
Drive Dimensions (L x W x H)240 x 130 x 265
Weight (kg) only drive3.9 Kg
coupling typeF
StandardIEC/EN 61000-6-2 / EN 61000-6-3
Safety standardIEC/EN 61010-2-51
Applications
  • Creation of dispersions and emulsions
  • Dispersing of plant, human or animal tissue, resins and pigments
  • Solving of solid materials of higher viscosities as well
  • Creation of suspensions
  • For the formulation of lotions, creams and food
  • Oil-in-water (O/W) or water-in-oil (W/O) emulsions
  • Sample preparation for subsequent extraction of pharmaceutical agents (API)
  • From plant and animal tissue and for API dispersion in pharmaceutical products
  • Excellent for quality assurance and quality control
