Features

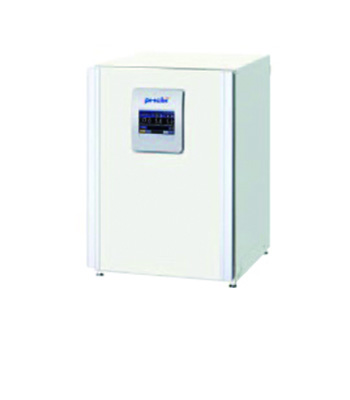

IncuSafe MCO-170M Multigas Incubator는 산소 및 기타 가스를 가장 정밀하게 조절하는 동시에 우수한 온도 균일성, 오염 제어 및 유용성을 유지합니다. Dual Infra Red 센서는 여러 개의 문이 열린 후에도 오버슈트 없이 초고속 CO2 회수를 달성하며, 고유한 고체 지르코니아 O2 센서는 생체 내 조건을 시뮬레이션하기 위해 생리학적 산소 수준을 정밀하게 제어합니다.
민감한 세포 배양
생리학적 산소 수준에서 세포를 배양하면 세포가 더 빨리 성장하고 더 오래 살며 더 적은 돌연변이를 경험할 수 있습니다. IncuSafe MCO-170M Multigas Incubator는 생리학적 산소 수준에서 세포를 배양할 때 보다 정확한 결과를 얻을 수 있도록 도와주므로 포유류 조직 연구 응용, 세포 치료, 줄기 세포 연구, 병리생리학 연구 및 의약품 생산 공정에 이상적입니다.
활성 배경 오염 제거
독점적인 inCu-saFe 구리 강화 스테인리스 스틸 합금 내부는 구리의 살균 특성과 스테인리스 스틸의 내구성을 제공합니다. 옵션인 독립형 SafeCell UV 램프는 배양된 세포에 해를 끼치지 않고 가습 팬에서 순환하는 공기와 물의 오염을 제거합니다.
MCO-170M 제품군은 두 가지 다른 모델로 제공됩니다.:
- MCO-170MUV (The standard model with UV lamp)
- MCO-170MUVH (The standard model with UV lamp and H2O2. (You will only need to buy the generator and H2O2 liquid separately)
다음에 적합합니다.
- Stem Cell Research & Differentiation
- In vitro Fertilization
- Regenerative Medicine
- Primary Cell Culturing
- Cancer Research
- Embryo Studies
장점
- Reproduction of in vivo conditions
- Time-Saving H2O2 Decontamination
- Improved Use & Maintenance
- Efficient Workflows
- Intuitive Usability
특징
- Unique solid Zirconia O2 sensor
- USB port
- Optional electric door lock with password
- LCD touch screen
- Integrated shelf supports
- SafeCell UV system
- Exclusive InCu SaFe copper-enriched stainless steel interior
- PHCbi proprietary single-beam, dual detector infrared (IR2) CO2 sensor
- Direct Heat and Air Jacket Heating System
- Field-reversible doors.
- Adjustable shelves
- Hydrogen Peroxide Vapour Decontamination (Optional)
규격
External Dimensions (W x D x H) | 620 x 710 x 905 mm |
Internal Dimensions (W x D x H) | 490 x 523 x 665 mm |
Volume | 161 liters |
Net Weight | 79 kg |
Temperature Control Range & Fluctuation | AT +5 ~ +50, ±0.1 °C |
Temperature Uniformity | ±0.25 °C |
CO2 Control Range & Fluctuation | 0 ~ 20, ±0.15 % |
O2 Control Range & Fluctuation | 1 -18 and 22 - 80, ±0.2 % |
Humidity Level & Fluctuation | 95, ±5 %RH |
Sterilisation Method | H2O2 Decontamination |
Temperature Sensor | Thermistor |
CO2 Sensor | Dual IR |
O2 Sensor | Stabilized Zirconia Sensor |
Display | LCD Touch Screen |
Exterior Material | Painted Steel (rear cover not painted) |
Interior Material | Stainless Steel Copper-Enriched Alloy |
Insulation Material | Expandable Polystyrene Beads |
Heating Method | Direct Heat & Air Jacket System |
Outer Doors | 1 |
Outer Door Lock | Optional |
Field Reversible Door | Included |
Inner Doors | 4 gastight - made of tempered glass |
Shelves | 3 x Stainless Steel Copper-enriched Alloy |
Shelf Dimensions (W x D x H) | 470 x 450 x 12 mm |
Max. Load Per Shelf | 7 kg |
Max. Shelf Capacity | 10 |
Access Port | 1 |
Access Port Position | Rear Upper Left |
Access Port Diameter | 30 |
Power Failure | R |
Out of Temperature Setting | V-B-R |
High Temperature | V-B-R |
Out of CO2 Setting | V-B-R |
Out of O2 Setting | V-B-R |
Door Open | V-B |
Power Supply | 230 V |
Frequency | 50 Hz |
Noise Level | 25 dB |

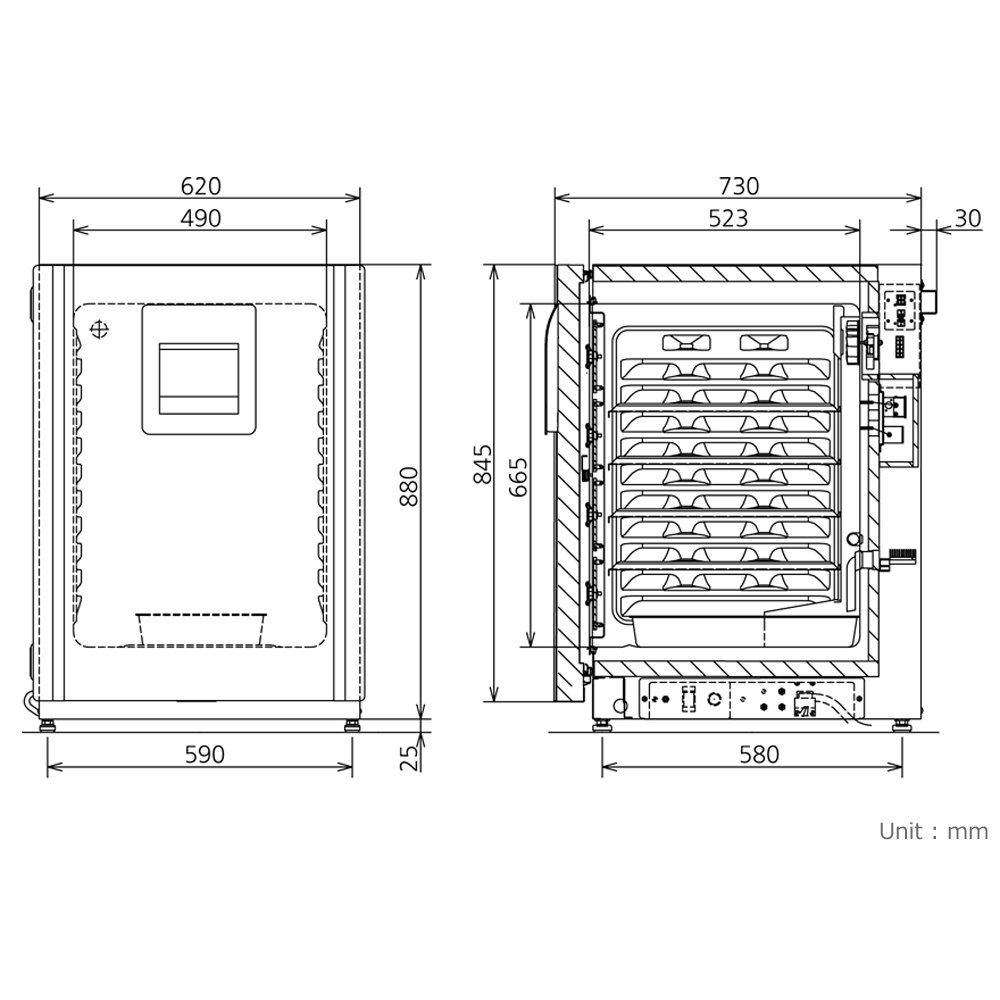

Dimensions
MCO-170AICD
1MCO-170AIC
1MCO-170AICUVD
1MCO-170AICUV
1
