이중 글래스도어로 샘플관찰이 용이한 대용량 CO2인큐베이터
Contamination is the worst enemy of cell culture. Panasonic's solution to the problem is Preventive Contamination Control powered by Exclusive inCu saFe copper-alloyed stainless steel interior and patented SafeCell UV sterilization system that significantly reduce the risk of contamination while cell culture protocols are in process.
inCu saFe copper-enriched stainless steel is Panasonic proprietary solution against contamination that combines the bacteria-killing property of copper with the corrosion resistance of stainless steel.
Copper-enriched stainless steel kills mycoplasma
Panasonic is proud to announce that InCu saFe, the copper-enriched stainless steel used in the interior of its CO2 and O2/CO2 incubators, kills mycoplasma. Mycoplasma is one of the most common causes of contamination found in cell culture and the source can often be traced back to contaminated laboratory apparatus. The inCu saFe walls and shelves inside Panasonic CO2 and O2/CO2 incubators eliminate mycoplasma and significantly reduce the risk of contamination without emptying the incubator.
SafeCell UV system with programmable ultraviolet lamp, isolated from cell cultures, sterilizes chamber air and water in the humidifying pan to maintain contamination-free conditions within the chamber.
Completely safe for cell culture
- Ozone-free UV lamp
- UV shielded from culture area by the tray cover of humidifying pan.
- UV shielding by laboratory dishes and flaskets
(Laboratory dishes and flaskets are made of polystyrol with thickness of 50 mm, shielding UV 100%. (Photos below show the lid of the laboratory dish shielding UV without preventing proliferation of culture.)
Improved temperature stability with D.H.A. system (except MCO-175/80IC)
The patented Direct Heat and Air Jacket™ conditioning system precisely regulates temperature through three independent heating zones under microprocessor PID control. Uniform temperatures are further enhanced by gentle fan circulation.
Auto calibration (MCO-18AC/20AIC)
The microprocessor will automatically “Zero” the incubator using room air as a reference. This feature will maintain an accurate CO2 control without worrying about CO2 drift. (Dual IR sensor system used in MCO-19AIC/19M requires no zero calibration.)
By turning on the power and simply entering the temperature and CO2 setpoints into the unit you can walk away while the microprocessor takes over. The unit will attain setpoint and adjust itself to your required parameters.
The interior chamber is constructed of Copper Alloy stainless steel with rounded corners. All plenums, shelves, brackets and standard humidity pan are removable without the use of tools. These design features provide an interior that is easily cleaned to reduce chances of contamination.
For Superior Usability
The reversible door allows right or left opening depending on the installation space and how other peripheral equipment are positioned. Each corner of the door has a special grip for easier opening.
Shelves provide easier access to culture containers
Much more convenience has been obtained by slanting downward the bending
direction of the front of the shelves. As a result, putting in and taking out culture containers like dishes and micro plates have become extremely easy.
Automatic CO2 cylinder switchover system (option)
This system automatically switches from the primary to secondary gas cylinder when a CO2 gas level drop in the chamber is detected. The in-use gas cylinder is confirmed on the control panel.
Inner door and gasket
The inner design is critical to successful contamination control technique. The inner gasket body forms an effective thermal transition between the ambient air and warm, humidiﬁed incubator atmosphere, minimizing condensation and eliminating moisture traps which can harbor contaminants.
Stackable design takes up less space
By simply using the fixing metal supplied as a standard accessory, two*1 or three*2 units can be stacked according to available space and usage. This configuration is also cost-effective.
- Flexible large capacity
- inCu saFe interior
- Accurate temperature and CO2 level control
- Full view double paned glass door
- SafeCell UV system (option)

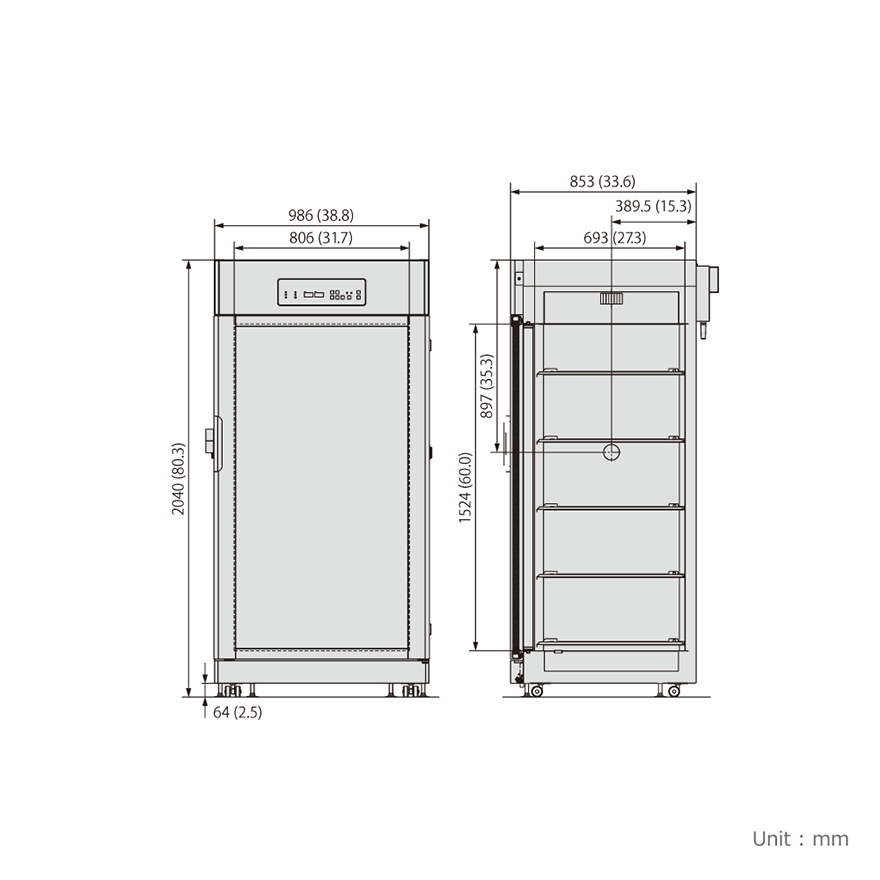

|External Dimensions||986 x 853 x 2040 (mm) / 38.8 x 33.6 x 80.3 (inch)|
|Interior Dimensions||806 x 693 x 1524 (mm) / 31.7 x 27.3 x 60.0 (inch)|
|Interior Volume||851 liters / 30.1 cu.ft.|
|Exterior Cabinet and Door||-|
|Interior and Shelves||Copper-enriched stainless steel (except humidifying pan)|
|Shelves||776 x 659 x 10 (mm) / 30.6 x 25.9 x 0.4 (inch) Copper alloy stainless steel Maximum load 30 kg / 66.1 lbs. per shelf Shelves 5 (standard)|
|Access Port||40 mm (1.6 ”) diameter, Two locations, each on both sides|
|Heating Method||Heater with fan air circulation, Cross shelf laminar air flow|
|Air Filter||0.3 μm, Efficiency: 99.97 % (for CO2)|
|Water Level Sensor||Thermal type|
|Communication||• High / low temperature • CO2 density • Door ajar • Water level • Independent overheat protection|
|CO2 Gas Connection||-|
|CO2 Gas Pressure||-|
|Tempearture Control Range||-|
|CO2 Control Range and Deviation||-|
|Interior Humidity||95 ± 5 % RH|
|Max. Power Consumption||-|
|Max. Heat Discharge||-|
|CO2 Sensor Platform||-|
|CO2 Sampling Patent Pending||-|
