804(W) x 772(D) x 1802(H) mm
482 liters (17.0 cu.ft.)
Temperature range: - 20 °C to - 40 °C
상품이미지 최대 사이즈
  • 상품이미지 1
  • HMS
상품 정보 표
판매가격 1
제조사/원산지 PANASONIC/일본
  • - +
    1원 X
총 합계금액 1
상품상세 배너
  • 상품상세설명
  • 고객상품평
  • 상품문의
  • 배송/취소/교환안내


카다로그 다운로드


안정적이고 일정한 온도제어 컨트롤


Panasonic MDF-U5412 provides an ideal freezing environment for preservation of blood plasma, vaccines, test samples, and other biological specimens.

Stable & uniform temperature design
  • Double outer doors
  • Full-height storage containers on each shelf
  • Cooling tubes under every shelf
  • Direct cooling system for stable temperature control
  • Fine-controllable refrigeration circuit with valve
User friendly design
  • Built-in door latch for each door
  • Easy calibration through the control panel Visual and Audible Alarm System
  • High & Low temperature alarm
  • Power failure alarm with non-volatile memory back up
  • Self-diagnostic system
Large storage capacity
  • 300ml FFP* bag x 280 pieces.
*Fresh Frozen Plasma
Safety function
  • Remote alarm contact
  • Re-activating buzzer, lamp and remote alarm contact (30min. after buzzer stops)
  • Standard door lock and independent padlock hasp door latches for extra security
  • Remote monitoring by data acquisition system (option)
  • 1/7/30 days circular recorder (option) environment friendly
  • HCFC-Free refrigerant and insulation

Easy-to-Use, Slim & Compact Design

  • Maximum capacity in minimum installation space
  • Door latch with padlock hole
  • Temperature alarm
  • Power failure alarm


External Dimensions804 x 772 x 1802 (mm) / 31.7 x 30.4 x 71.0 (inch)
Internal Dimensions658 x 607 x 1272 (mm) / 25.9 x 23.9 x 50.1 (inch)
Effective Capacity482 liters (17.0 cu.ft.)
External CabinetGalvanized steel with baked-on finish
Internal CabinetRigid polyurethane foamed-in place
Door2, Insulated and magnetic sealed
InsulationRigid polyurethane foamed-in place
Access PortsDiameter 30 mm, 2 on back side
Door Lock1 door lock, 2 lockable door latches for each door
Net Weight134 kg (288.8 lbs.)
Coolding MethodDirect cooling
Compressor400 W Rotary type sealed
RefrigerantHFC refrigerant
AlarmsTemperature alarm (High / Low (± 5 °C to ± 15 °C, adjustable), Power failure alarm , Remote alarm contact
AccessoriesDoor lock key, Defrost spatula, Storage containers
Storage Containers-
Caution: Panasonic guarantees the product under certain warranty conditions. Panasonic in no way shall be responsible for any loss of content or damage to content.
• Appearance and specifications are subject to change without notice.

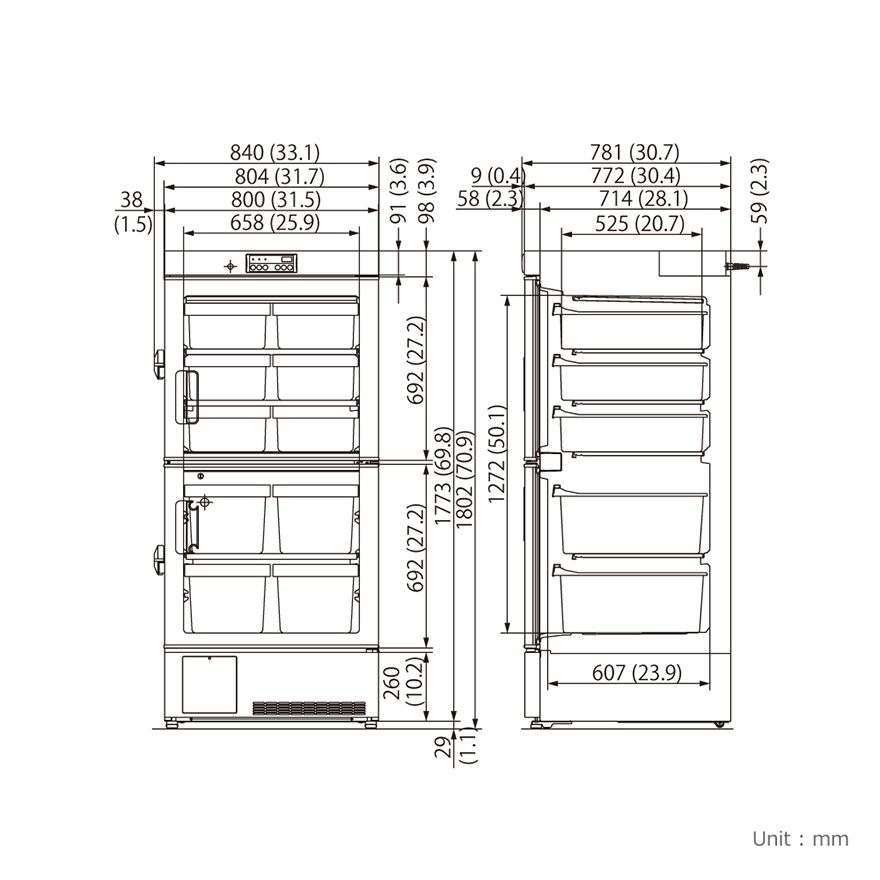

*1 Exterior dimensions of main cabinet only - see dimension drawings showing handles and other external projections.
