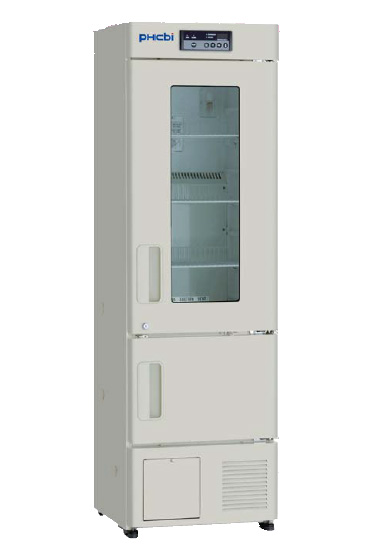

냉동고가 결합되어 있는 제약 냉장고
- Microprocessor control system provides accurate temperature.
- Fan-forced air circulation system (refrigerator) offers fast recovery of temperature and better uniformity.
- Unique cycle defrost system prevents temperature rising by shorter defrost cycles which activate after each compressor cycle.
- Various safety systems such as high/low temperature audible and visual alarms, remote alarm, door ajar alarm and keyed door locks.
- MPR-414FS has no glass on the door to keep contents unseen.
- One unit with dual temperature zone needs only minimal installation space.
- Four-door design reduces air loss during door opening and makes efficient use of space in front of unit. (MPR-414F/FS)
- Triple-pane (MPR-414F) or double-pane (MPR-215F) windows with heat reflection film reduce condensation.
- Zero adjustment through control panel and optional recorder provide easier validation service.
- Two specially designed compressors offer quiet operation.
- One unit dual temperature zone (Refrigirator with Freezer)
- Superior cooling performance
- Quiet operation
- Various alarm and safety functions
|Product Series Name||Pharmaceutical Refrigerators|
|External Dimensions||540 x 557 x (45) * x 1794 (mm) / 21.3 x 21.9 x (1.8) * x 70.6 (inch) * projection|
|Internal Dimensions||455 x 466 x 917 (mm) / 17.9 x 18.3 x 36.1 (inch)|
|Effective Capacity||176 liters (6.2 cu.ft.)|
|External Cabinet||Galvanized steel with baked on finish|
|Internal Cabinet||Styrene resin|
|Insulation||Rigid polyurethane foamed in place|
|kg/Shelf||20 kg / shelf|
|Access port||ø 30 mm (left)|
|Casters||4 casters with 2 adjustable leveling feet|
|Cooling method||Fan-forced air circulation|
|Temperature range||+ 2 °C to + 14 °C (Ambient temp. : 30 °C)|
|Temperature control||Microprocessor control|
|Net weight||86 kg (190 lbs.)|
|Freezer : Internal Dimensions||420 x 342 x 267 (mm) / 16.5 x 13.5 x 10.5 (inch)|
|Freezer : Effective Capacity||39 liters (1.4 cu.ft.)|
|Freezer : External Cabinet||Galvanized steel with baked on finish|
|Freezer : Internal Cabinet||Colored aluminum plate|
|Freezer : Outer Door||-|
|Freezer : Insulation||Rigid polyurethane foamed in place|
|Freezer : Shelves||1|
|Freezer : Access Port||ø 30 mm (left)|
|Freezer : Lighting / Casters||4 casters with 2 adjustable leveling feet|
|Freezer : Cooling Method||Direct cooling|
|Freezer : Compressor||55 W|
|Freezer : Refrigerant||HFC|
|Freezer : Temperature Control Range||Microprocessor control|
|Freezer : Alarms||-|
