1150(W) x 870(D) x 1990(H) mm
845 liters
Cooling Performance: -86℃
상품이미지 최대 사이즈
  • 상품이미지 1
  • HMS
상품 정보 표
판매가격 1
제조사/원산지 PHC corporation/일본
  • - +
    1원 X
총 합계금액 1
상품상세 배너
  • 상품상세설명
  • 고객상품평
  • 상품문의
  • 배송/취소/교환안내


카다로그 다운로드


Excellent reliability and uniformity within an optimal footprint

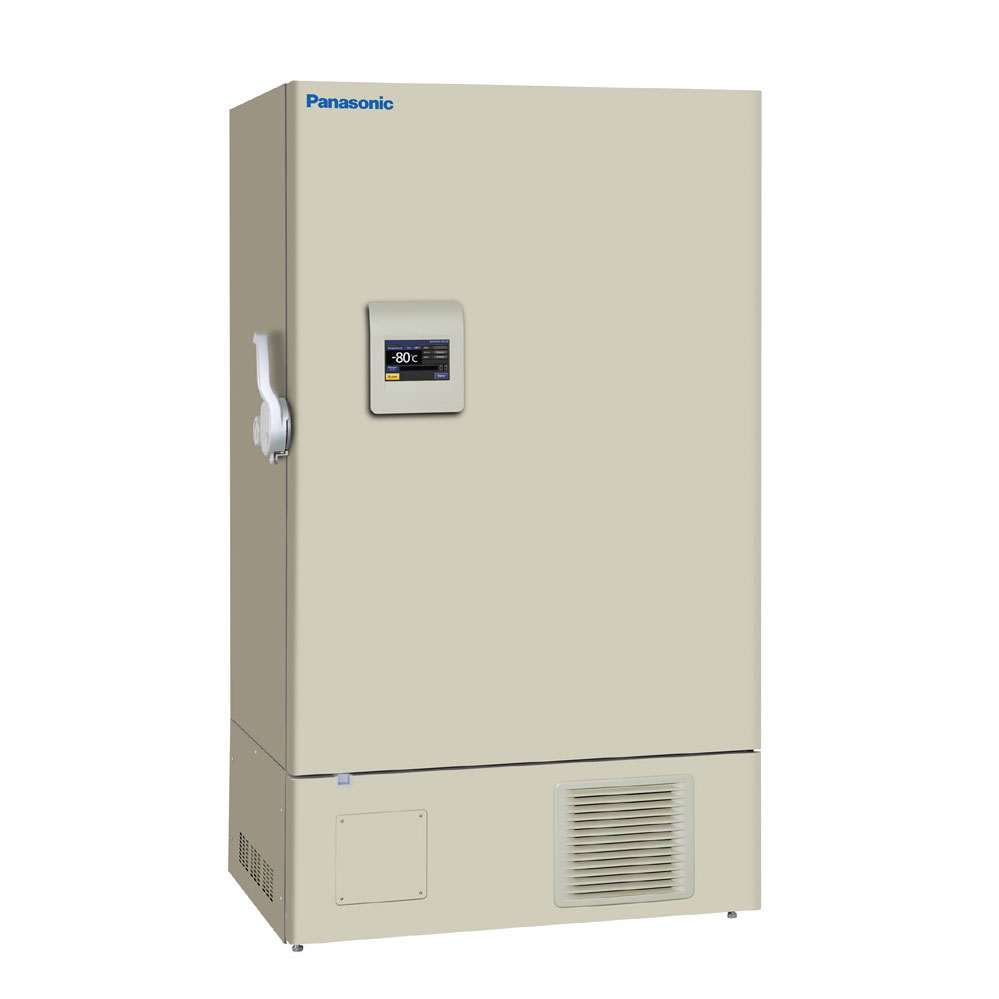

The MDF-DU900V VIP -86°C Upright Freezer provides maximum sample storage capacity within an optimum footprint combined with industry leading cooling performance and reliability for an ideal long-term preservation solution.

Maximum Sample Storage

The use of patented VIP PLUS panels within the large freezer cabinet allows a capacity of up to 672 2” boxes inside a footprint of just 1m2 for maximum storage. The freezer’s conventional depth allows for easy installation.

"Ideal for high volume and long term sample storage in biobanks and biorepositories."

Reliable Technologies

Quality of design and manufacture ensures trusted and reliable storage that maintains the integrity of precious samples. The compressors that are specifically designed for ultra-low temperature applications are employed in the proven PHCbi cascade refrigeration system ensuring the highest levels of performance and reliability.

Enhanced Use & Intelligent Security

The new EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

PHC offers three other sizes of the VIP ULT freezers:


  • Maximum Sample Storage
  • EZLatch makes acces to samples convienent
  • Certified as a Class IIa Medical Device
  • Enhanced Use & Intelligent Security
  • Vacuum release port for improved accessibility


  • VIP PLUS Insulation maximizes storage capacity.
  • New EZlatch Easy-open doorhandle
  • Colour LCD Touch Screen
  • USB Port




External Dimensions (W x D x H)1150 x 870 x 1990 mm
Internal Dimensions (W x D x H)1010 x 600 x 1400 mm
Volume845 litres
Net Weight372 kg
Capacity (Aluminium Racks 2” Boxes)672 (2” boxes)
Capacity (Stainless Steel Racks 2” Boxe)-
Cooling Performance-86 °C
Temperature Setting Range-50 to -90 °C
Temperature Control Range-50 to -86 °C
ControllerMicroprocessor, non-volatile memory
DisplayLCD Touch Screen
Temperature SensorPt-1000
Refrigeration SystemCascade
Compressors2 x 1100 W
Insulation MaterialPUF / VIP Plus
Insulation Thickness70 mm
Exterior MaterialPainted Steel
Interior MaterialPainted Steel
Outer Doors/Lid1
Outer Door LockY
Inner Doors/Lid2 pieces (insulated)
Max. Load - Per Shelf50 kg
Max. Load - Total150 kg
Vacuum Release PortY
Access Port2
Access Port PositionBack, Bottom
Access Port Diameter17
Casters4 (2 leveling feet)
Power FailureV-B-R
High TemperatureV-B-R
Low TemperatureV-B-R
Door OpenV-B
Power SupplyLocal
Noise Level52 dB [A]


Small Inner Door KitMDF-9ID-PW (max 2) 4) set of 2
Liquid CO2 back-upMDF-UB6-PW
Temperature recorders
- Circular typeMTR-G85C-PE 5)
- Chart paperRP-85-PW
- Ink penDF-38FP-PW
- Continuous strip typeMTR-85H-PW
- Recorder housingMDF-S3085-PE
Optional communication systems
Ethernet interface (LAN)MTR-L03-PW
