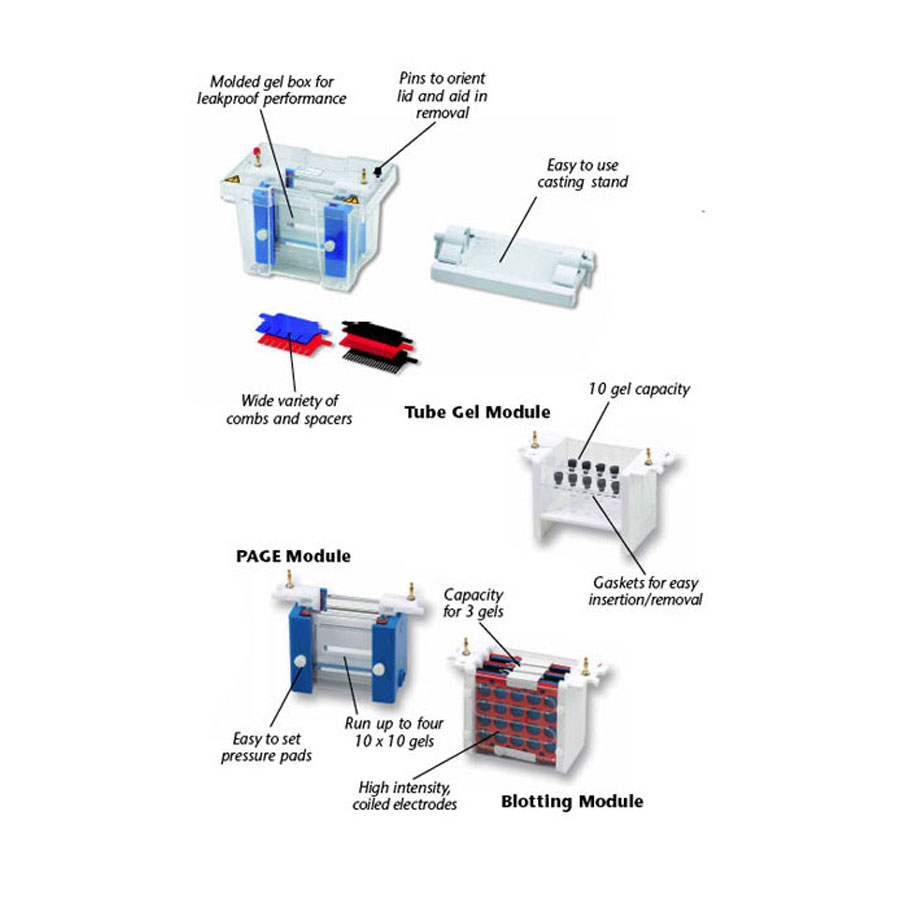

| Modular Mini Vertical PAGE Systems Why purchase three different systems for protein electrophoresis, IEF and Western blotting when the Select BioProducts Modular Mini Vertical PAGE System will do them all. The system features inserts for each application and a common buffer tank in which to run them.Each insert has its own electrode assembly which connects to the lid of the buffer tank. For safety, the power leads connect directly to the lid - when the lid is removed, power is disconnected from the system. The tank has a small pad that fits into position in the lid. This ensures that the lid is always properly placed and aids in its removal. The buffer tank is molded to prevent separation and leaking.Inserts, accessories and running tanks are manufactured from quality materials to ensure a long life. A variety of spacers, combs and other accessories are available to customize the system. All spacers and combs are color coded to indicate thickness. Each system is supplied with a cooling pack for superior results during longer runs or quick runs at higher voltages. Three packages are available to meet your needs. Components may also be purchased separately. There are three models to the Modular Mini Vertical PAGE system. Please see the specification table below for a quick overview or download the brochure for more detailed information. To see the variety of accessories available, visit our accessories page or download our accessories brochure. |
| Model | Mini PAGE System | Mini PAGE Electroblotting System | Mini PAGE Tube Gel System |
| Gel Dimensions | 10 x 10 cm | NA | 8cm long |
| Capacity | 2 gels/run* | 3 gels/transfer | 10 tubes/run |
| Maximum Samples | 20 per gel | NA | 10 (1/gel) |
| Buffer Tank (WxDxH) | 19 x 13 x 15 cm | 19 x 13 x 15 cm | 19 x 13 x 15 cm |
| Buffer Volume | 250 mL | 1200 mL | 500 mL |
| Included Items** | 2 ea 10 x 10 notched plates 2 ea 10 x 10 plates w/spacers 2 ea 1 mm comb, 12 wells PAGE Module, casting base | 3 ea blotting cassettes 6 ea fiber pads Blotting module | 20 ea capillary tubes 20 ea tube supports 10 ea blocking plugs 2D module |
| Catalog Number (Ordering Information) | SBE2010-P | SBE2010-PB SBE2010-BT (Comes without PAGE insert) | SBP2010-P2 |
| *It is possible to run 4 gels by stacking the plates. **Each system includes buffer tank, lid with leads and cooling pack. The Blotting and 2D Gel Systems also include the PAGE components. | |||
