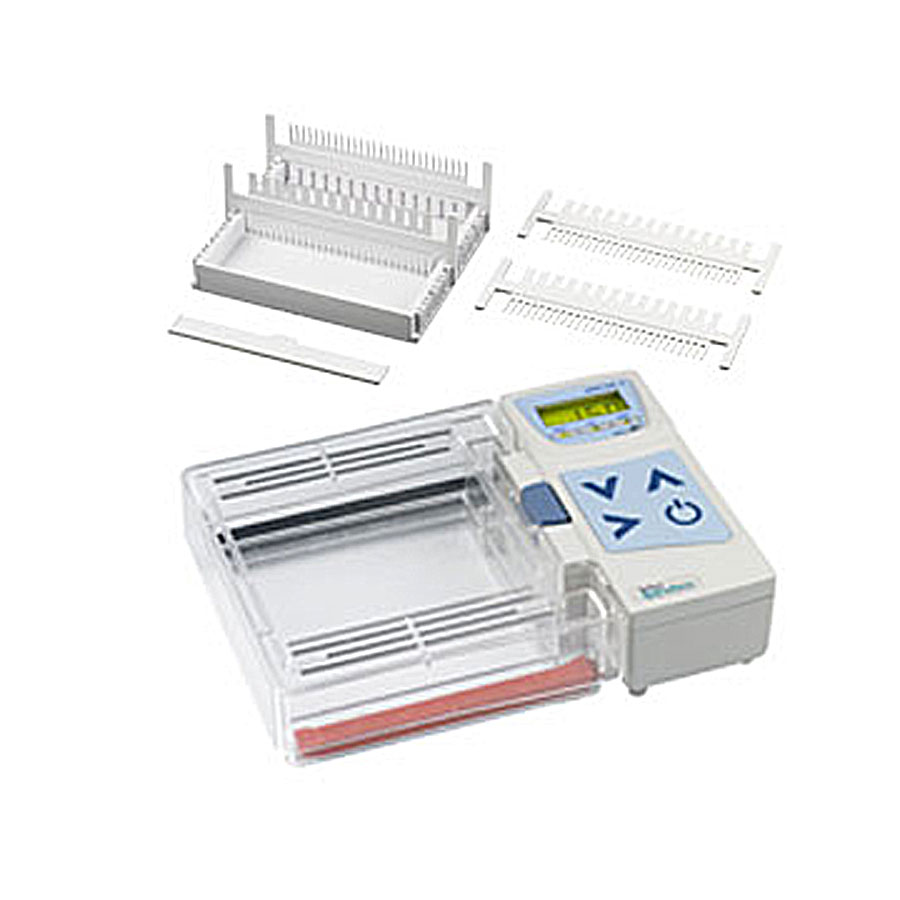

| MiniGel II The compact design of the MiniGel II results in a much smaller footprint than that of traditional gel boxes and power supplies. The 150V power supply connects directly into the gel box, eliminating tangled leads.Casting gels is quick and easy - place the gel tray in the stand, slide the comb into the slots and pour. Combs are multichannel compatible and gel trays are UV transparent.The molded gel tank provides leak-proof performance while the vented lid aids in dispersing heat. For safety, a magnetic sensor recognizes the presence or absence of the lid and allows current to flow accordingly. Operating parameters are set digitally, including amperage and voltage with automatic crossover. A run can be paused at any time and the parameters changed. A micro casting set for four 6 x 6 cm gels is available separately.
|
| Specifications Output voltage/current 10V to 150V/10 - 400 mA Timer 0 to 99 hours or continuous, audible alert Overall Dimensions (W x D x H) 10 x 6.7 x 2.5 in./24.5 x 17 x 6.2 cm Gel Capacity 1 large (12.5 x 12 cm), 2 small (12.5 x 6 cm), or 4 micro (6 x 6 cm) Ordering Information SBE0160 MiniGel II with gel tank, direct connect power supply, 1 large and 2 small gel trays, 4 combs and casting stand, 120VSBE160-2 MiniGel II with gel tank, direct connect power supply, 1 large and 2 small gel trays, 4 combs and casting stand, 230V, with EU power cordSBE160-3 MiniGel II with gel tank, direct connect power supply, 1 large and 2 small gel trays, 4 combs and casting stand, 230V with UK power cordSBE166 Micro casting set for four gels, includes casting stand, four 6 x 6 cm gel trays and 4 combsSBE161 Gel tray, large, 12.5 x 12 cm, set of 2 SBE162 Gel tray, small, 12.5 x 6 cm, set of 2 SBE163 Gel tray, micro, 6 x 6 cm, set of 4 SBE164 Large comb, 13.28 wells, set of 2 SBE165 Small comb, 5/8 wells, set of 2 SBE167 Mini casting stand SBE168 Standard casting set, includes 1 large gel tray, 2 small gel trays, 4 large combs and a casting stand |
