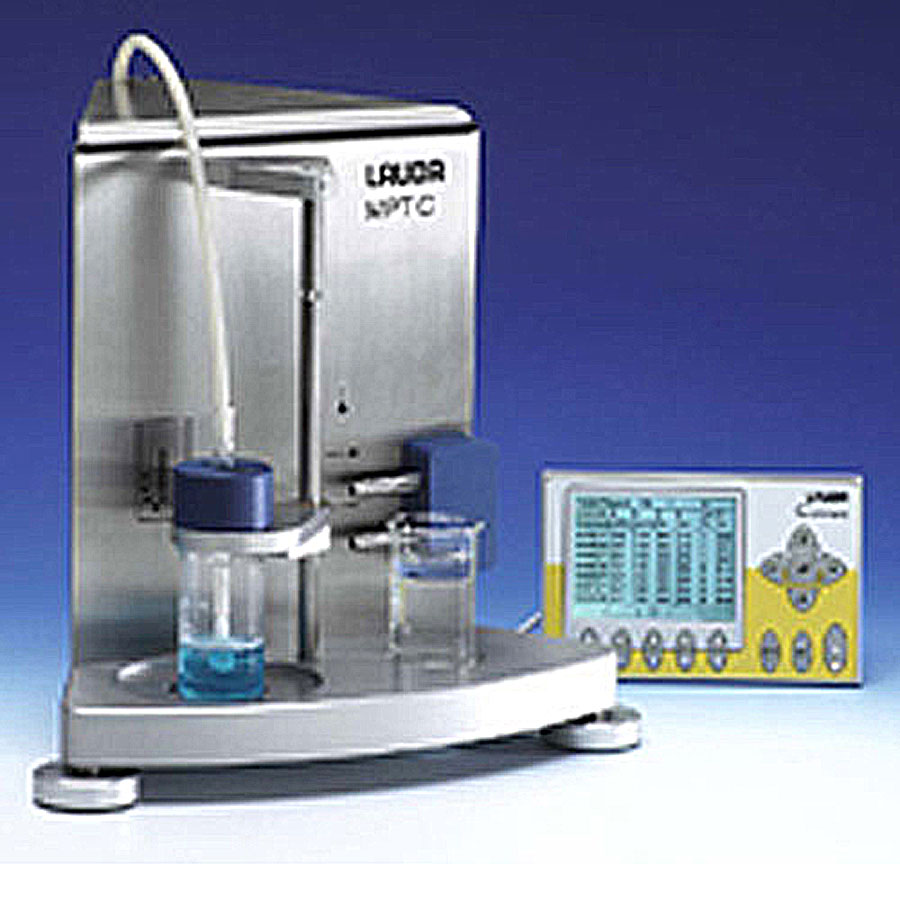

The handy LAUDA bubble pressure tensiometer MPT C
Technical data:
Measured value | Dynamic surface tension, Fainerman-method | |
Measuring methods | Constant flow, phased flow changes | |
- Resolution | mN/m | 0.1 |
Measuring range of surface tension | mN/m | 10 to 100 |
Dynamic range | ms | 1 to 2000 |
Monitoring mode "constant flow" | min. | 1 to 60 and more |
Temperature range (sample) | °C | 5 to 85 |
Temperature measurement | Digital (optional) | |
- Resolution | °C | 0.1 |
- Precision | °C | ±0.5 |
Display | mm | 320 x 240 graphic display, 11 x 40 characters |
Display modes | Tabular, graphic, surface tension as a function of the surface age (t, Log t) | |
Selection of measuring mode | Menu-controlled | |
Parameter input | Menu-controlled | |
Sample description | Numerical | |
Measuring point distance mode "constant flow" | min. | Selectable |
Measurement value | Max. 50 results with date and time | |
Duration of experiment | min. | 3 to 20 (depending on the measuring point of density) |
Interfaces | RS 232 | |
Documentation | Printer, PC (optional) | |
Data transmission software | For PC running WINDOWS 98 and higher (optional) | |
Weight | kg | Approx. 7.0 |
Dimensions (WxDxH) | mm | 280x250x280 |
Power supply | V | 90 to 264 |
Output of the measured values is optional via a printer or a data transmission software on the PC via the RS 232-interface. The measurement and the documentation of the temperature in the sample can also be carried out by means of an optional digital temperature probe. In addition to the proven PVDF-coated glass capillaries, steel capillaries (such as for highly alkaline samples) are available.
Standard accessories
- Two glass capillaries
- Set of beakers to take samples
- Humidifier
Further accessories
- Digital temperature probe for
measuring in the sample
- Data transmission software for PC
under WINDOWS (optional)
- Double-walled thermostating vessel
- Diverse types of capillary
- Protocol printer
- Membrane pump for capillary rinsing
- Online flow cell
Measuring standards
- ASTM D 3825
