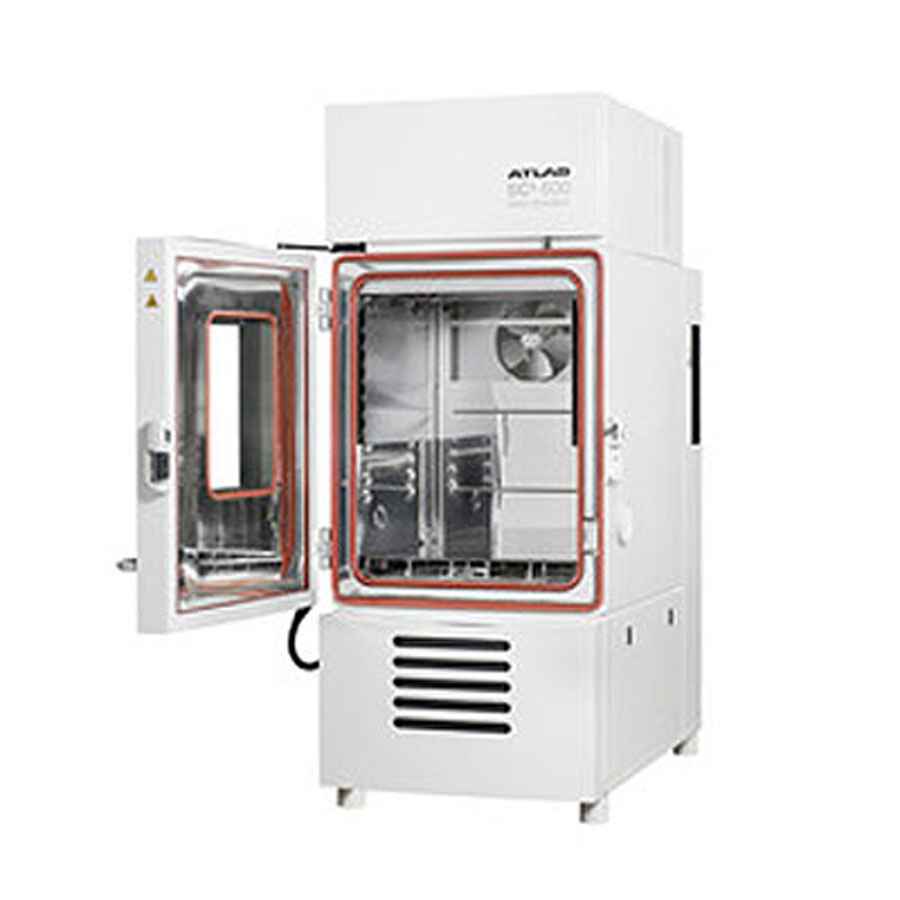

Light Climatic Test Chambers,
series SC.../ MH and SC... / MHG
In combination with the irradiation unit (metal halide lamp and outdoor filter), all models provide a full-function climate chamber. With a capacity of 340, 600 or 1000 liters, the useable volume of the test chamber has been specifically designed for the examination of material samples, components sections and smaller components. The test chamber can be easily opened with one hand. The height of the sample carrier can also be varied to ensure optimal irradiation of the various samples.
| Test space volumes | 340, 600 and 1000 l |
| Temperature range with irradiation | -20 °C to +100 °C |
| Humidity range with irradiation | 10 % to 80 % RH |
| Irradiation intensity Type MH | about 1000 W/m² |
| Irradiation intensity Type MHG | about 800 to 1200 W/m² |
Control System:
Controller Board S!MCON/32-NET* with removable Colour touchpanel.
