MODEL 252 & 260 & 260 UV

Colorimeter
LOADING.....
상품이미지 최대 사이즈
  • 상품이미지 1
  • HMS
  • GOOGLE PLUS
상품 정보 표
판매가격 1
제조사/원산지 SHERWOOD/영국
  • - +
    1원 X
총 합계금액 1

상품상세 배너
  • 상품상세설명
  • 고객상품평
  • 상품문의
  • 배송/취소/교환안내

상품상세설명

카다로그 다운로드 매뉴얼

Sherwood의 CHROMA Colorimeter은 수년간 안정적이고 튼튼한 성능으로 세계적인 명성을 가져왔습니다. 21세기에 들어서면서 Sherwood Scientific은 장비 범위를 줄이고는 대신 광도계(Photometers)를 업데이트하고 이 분야의 장비에 있어서 특별한 소프트웨어 페키지를 추가하였습니다. Model 260 Colorimeter는 다른 장비에 없는 유일무이한 특징을 갖고 있으며 품질 관리, 수질 테스트, 적은 샘플을 활용하는 임상 화학자에게 필요한 솔루션을 제공합니다.

Model 260은 배터리 전원으로 작동하기 때문에 실험실 밖에서도 사용될 수 있습니다.

??

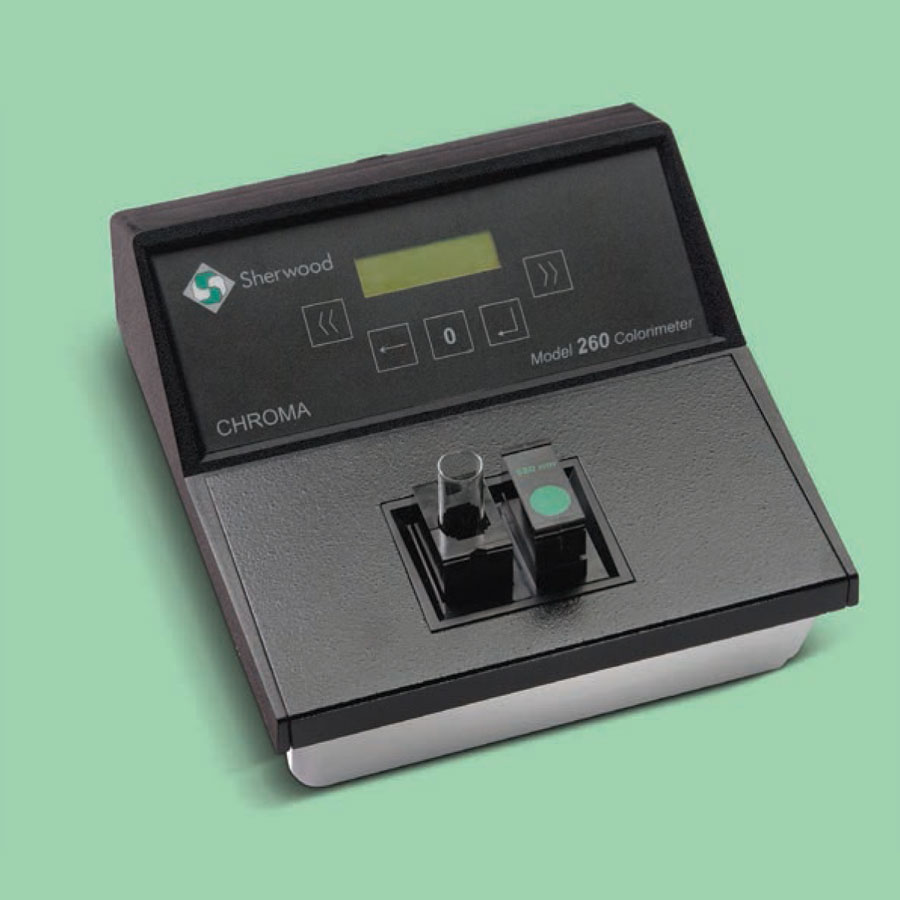

1. The CHROMA Model 260 Programmable Colorimeter

?

-Model 260은 CHROMA 257 Colorimeter의 대체품으로 유저에 의해 설치되는 최대 100개 방법을 프로그램화 할 수 있음

-사용자가 선택한 필터를 장비에 넣으면 반-자동으로 작동

-RS232 출력으로 사용자가 시리얼 프린터(serial printer)이 사용가능하고, 모든 결과, blank, calibraion이 시간차로 인쇄

-장비는 the new Kinetic Reaction Rate과 End Point methods 뿐만 아니라 Standard Solution, Factor를 이용한 Auto-Zero, Concentration으로 빠른 빛 흡수력(absorbance)와 전달 가능

??

2. Temperature and the new CHROMA range

?

-반응의 온도를 제어하는 2가지 옵션

-저비용의 옵션은 solid block heating에 의한 외부 온도 컨트롤을 사용하는 것

-내장된 소프트웨어는 Incubation (혹은 lag time)의 설정과 측정 시간을 포함

-이러한 시간의 끝 무렵 사용자에게 알람으로 colorimeter에서 blank sample이나 calibrant를 포함한 cuvettes으로 복귀할 것을 알려줌

-관련된 값을 가져오고 cuvette이 나머지 실험을 끝내기 위해 heating block으로 복귀

-Sherwood는 또한 the micro cuvettes (001 26 120)을 위해 특별히 디자인된 전기적으로 가열되는 cuvette holder (267 86 001)를 개발

-온도를 37 °C ± 0.1°C로 조절할 수 있고 옵션으로 가능

?

Specification

Model
Model 260
Part Number
260 00 009
Display
LCD Programmable
Wavelength Range
400 - 750nm
Wavelength Selection
Drop-in Filters
Bandpass
Gelatin 40 nm, Interference 6-10 nm (Optional) for all models
Modes
Absorbance, Transmission Concentration, Factor Kinetic (Rate and End Point) (Sample and Reagent blank)
Methods
100 programmable
Sample Numbering
Sequential and alpha-numeric 16 characters
Absorbance Range
0.000 to 1.999 Abs
Absorbance Resolution
0.001
Transmission Range
0-100%T
Transmission Resolution
0.1%
Stability
< ± 0.005A in any 15 min period
Warm up
15 minutes
Photometric Reproducibility
±1%T using same cuvette or test tube
Light Source
Pre-focused Tungsten lamp
Detector
Wide range silicon diode
RS232 Output
Yes
Size and weight
140H x 215W x 230D mm 2.2Kg net
Power Requirements
100-240 VAC Auto-ranging or 12 V DC Battery

?

260 Series Colorimeter Comparison Chart ModelModel 260Model 260UVPart Number260 00 009260 00 109Delivered withPSU Multi-Plug Adapter, 12V DC, 12W
10 x 45mm Cuvette Holder
10mm Plastic Cuvette, Pack of 100
Bulb
Lead, Instrument to Printer
Operators Manual M260
PSU Multi-Plug Adapter, 12V DC, 12W
10 x 45mm Cuvette Holder
UV Plastic Cuvette, Pack of 100
Gelatin Filters, Set of 8
Interference Filter, 340nm
Heated Cuvette Holder with additional PSU Multi-Plug Adapter, 12V DC, 12W
Lead, Instrument to Printer
Operators Manual M260uv
DisplayLCD ProgrammableLCD ProgrammableWavelength Range400 ? 750nm with Wavelength?325 ? 750nm with Wavelength?Wavelength SelectionSelection via Drop-in FiltersSelection via Drop-in FiltersBandpass?Gelatin 40nm, Interference 6-10nmGelatin 40nm, Interference 6-10nmModesAbsorbance, %Transmission, Concentration (Standard or Factor), Kinetic, (Rate & End-point),
(Sample & Reagent Blanks)
Absorbance, %Transmission, Concentration (Standard or Factor), Kinetic, (Rate & End-point),
(Sample & Reagent Blanks)
Methods100 Programmable/Storable100 Programmable/StorableSample NumberingSequential and Alpha-Numeric (16 characters)Sequential and Alpha-Numeric (16 characters)Absorbance Range/Resolution0.000 - 1.999 Abs0 ? 2.999 Abs with 0.001 ResolutionTransmission Range/Resolution?100 - 0% T with 0.1 Resolution100 - 0% T with 0.1? ResolutionWarm up15 minutes15 minutesLight SourcePre-focused Tungsten lampHalogenDetector?Silicon Photo DiodeSilicon Photo DiodeRS232 OutputYesYesSize and Weight140 x 215 x 230 mm. (h x w x d), 2.2Kg Net140 x 215 x 230 mm. (h x w x d), 2.2Kg NetPower Requirements100 - 240 VAC Auto-ranging or 12V DC Battery100 - 240 VAC Auto-ranging or 12V DC Battery

?

?
