PT 6100 D

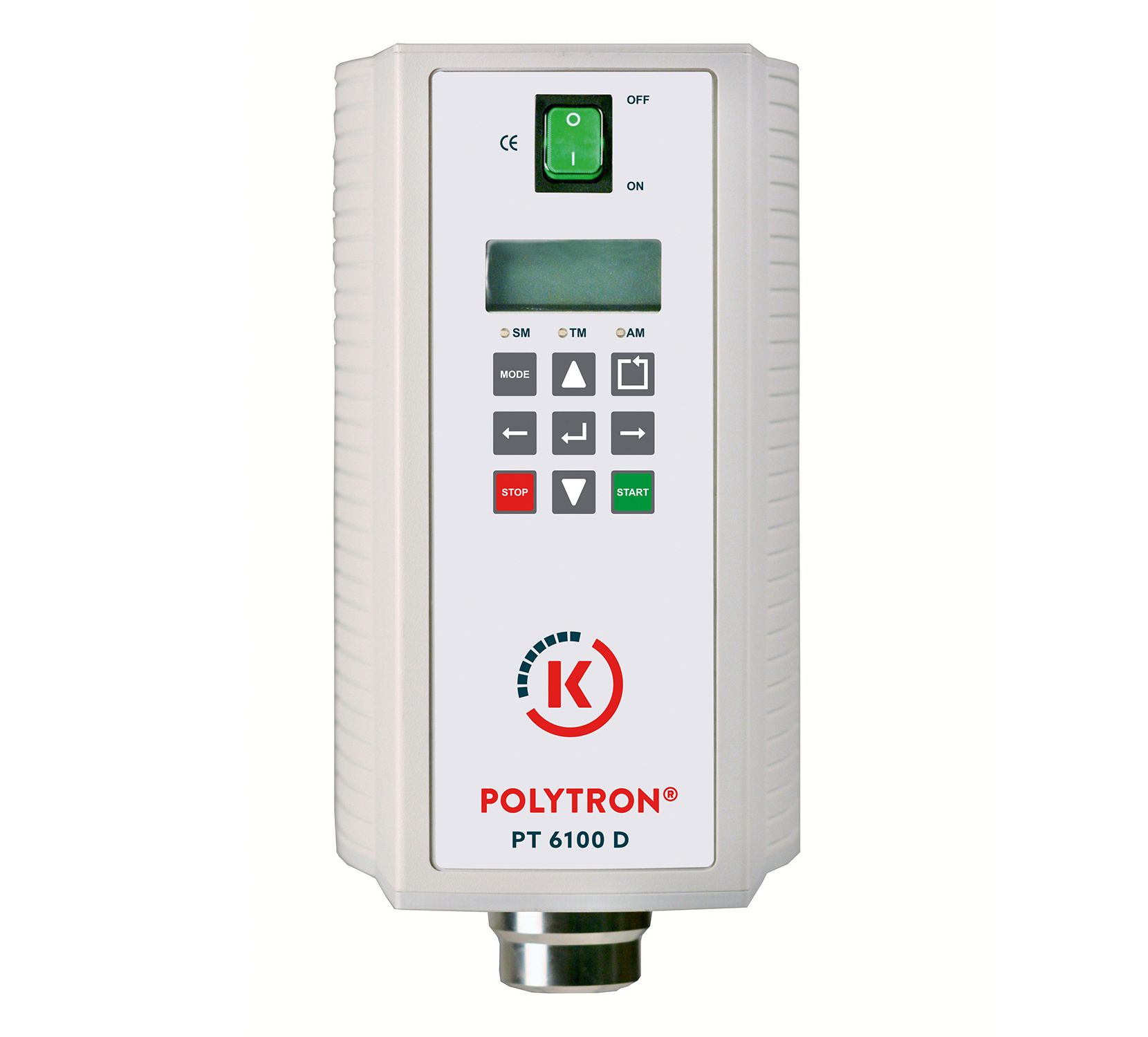

POLYTRON® PT 6100D Stand Dispersion Unit (High End Line)

« Application volume 0.1 ml to 30 litres »

The PT 6100 D Homogenizer is the most versatile unit of its type on the market today. This unit was specifically designed along with the 3100D due to many customer requests. Their applications required exactly reproducible conditions or needed different speeds for varying times or were processing temperature sensitive products. They also wanted to be able to control the unit from a PC. This unit meets all of those requirements. The bright and informative display shows all parameters. Any and all parameters can either be entered by membrane keypad or the PC interface using the KIN software. If so desired, results can be recorded and printed out in an Excel format. More than 30 dispersion aggregates with different geometries, designs, sizes, materials and coatings are available for selection.

ADVANTAGES

  • 1700 Watt motor provides sufficient power and high speed necessary for efficient particle size reduction
  • Digital motor speed control from 500 to 30,000 rpm
  • Aggregate tip speeds up to 32 m/s produce the finest particles possible
  • Soft start prevents splashing of homogenate from sample vessel
  • Integrated overheating, overload and blocking protection
  • Speed remains constant even when viscosity changes
  • Membrane keyboard permits easy finger tip entry of parameters and operation
  • Selection of three operating modes: standard, timed and auto
  • PC interface (RS232) for control via KIN software
  • Aggregate replacement using one-handed quick-release coupling
  • Insulated motor housing keeps motor noise to a safe, approved level during operation
  • Various models of dispersing aggregates which are Easy-to-Clean and designed for many different applications

Digital display for showing different process parameters and messages

  • Target speed [TS, rpm]
  • Actual speed [AS, rpm]
  • Power input [Pin, W]
  • Power output [Pout, W]
  • Torque [M, Ncm]
  • Motor current [I, A]
  • Voltage supply [U, V]
  • Product temperature (with optional Pt100 temperature probe) [TP, °C]
  • Internal controller temperature [Tc, °C]
  • Operating hour counter [Oh, h]


Accessories

Vessel holders or anti-slip mats with our stands.
Glass dispersion vessels which eliminate vortexing and improve homogenization efficiency Accessories for this drive
Dispersing-Aggregates
11030313 PT-DA 36/2EC-F250
11030314 PT-DA 36/BEC-F250 (BIOTRONA)
11030315 PT-DA 36/2MEC-F250
11030316 PT-DA 36/2G-F273
11030317 PT-DA 36/4EC-F250
11030318 PT-DA 36/4G-F273
11030319 PT-DA 36/2WEC-F250
11030320 PT-DA 40/2EC-F250
11030321 PT-DA 40/2G-F273
11030322 PT-DA 40/2MEC-F250
11030323 PT-DA 40/MG-F250
11030324 PT-DA 40/4WEC-F250
11030325 PT-DA 45/2EC-F250
11030326 PT-DA 45/2BEC-F250 (BIOTRONA)
11030327 PT-DA 45/2G-F273
11030328 PT-DA 45/2WEC-F250
11030329 PT-DA 45/6EC-F250
11030330 PT-DA 50/2EC-F250
11030331 PT-DA 50/2G-F273
11030332 PT-DA 50/2MEC-F250
11030333 PT-DA 50/2MG-F273
11030334 PT-DA 50/2WEC-F250
11030335 PT-DA 50/4EC-F250
11030336 PT-DA 50/6G-F273
11030337 PT-DA 53/DS-F250 (Dissolver)
11030338 PT-DA 60/2EC-F250
11030339 PT-DA 60/2G-F273
11030340 PT-DA 60/2MEC-F250
11030341 PT-DA 60/2MG-F273
11030342 PT-DA 60/2WEC-F250

Accessories

11040025 Stand, ST-P14/590+500
11050010 GS 15 Glass vessels without cover, working capacity max. 35 ml
11050011 GS 25 Glass vessels without cover, working capacity max. 150 ml
11050012 GS 40 Glass vessels without cover, working capacity max. 500 ml
11050012 GS 50 Glass vessels without cover, working capacity max. 900 ml
11050014 GS 60 Glass vessels without cover, working capacity max. 1300 ml
11051020 GS 15K Glass vessels with cover, working capacity max. 35 ml
11051021 GS 25K Glass vessels with cover, working capacity max. 150 ml
11051022 GS 40K Glass vessels with cover, working capacity max. 500 ml
11051023 GS 50K Glass vessels with cover, working capacity max. 900 ml
11051024 GS 60K Glass vessels with cover, working capacity max. 1300 ml
11051030 GS 15KL08 Glass vessels with feedthrough, working capacity max. 35 ml
11051031 GS 15KL12 Glass vessels with feedthrough, working capacity max. 35 ml
11051040 GS 25KL12 Glass vessels with feedthrough, working capacity max. 150 ml
11051041 GS 25KL20 Glass vessels with feedthrough, working capacity max. 150 ml
11051050 GS 40KL20 Glass vessels with feedthrough, working capacity max. 500 ml
11051051 GS 40KL26 Glass vessels with feedthrough, working capacity max. 500 ml
11051060 GS 50KL20 Glass vessels with feedthrough, working capacity max. 900 ml
11051061 GS 50KL26 Glass vessels with feedthrough, working capacity max. 900 ml
11051070 GS 60KL20 Glass vessels with feedthrough, working capacity max. 1300 ml
11051071 GS 60KL25 Glass vessels with feedthrough, working capacity max. 1300 ml
11052201 GS 100-1.C.B. Steel dispersing vessels with baffle part, working capacity max. 1000 ml
11052202 GS 100-2.C.B. Steel dispersing vessels with baffle part, working capacity max. 2000 ml
11052203 GS 100-3.C.B. Steel dispersing vessels with baffle part, working capacity max. 3000 ml
11052204 GS 100-4.C.B. Steel dispersing vessels with baffle part, working capacity max. 4000 ml
11052205 GS 100-5.C.B. Steel dispersing vessels with baffle part, working capacity max. 5000 ml
11052206 GS 100-6.C.B. Steel dispersing vessels with baffle part, working capacity max. 6000 ml
11052208 GS 100-8.C.B. Steel dispersing vessels with baffle part, working capacity max. 8000 ml
11052210 GS 100-10.C.B. Steel dispersing vessels with baffle part, working capacity max. 10000 ml
11052001 GS 100-1 Steel dispersing vessels without cover, working capacity max. 1000 ml
11052002 GS 100-2 Steel dispersing vessels without cover, working capacity max. 2000 ml
11052003 GS 100-3 Steel dispersing vessels without cover, working capacity max. 3000 ml
11052004 GS 100-4 Steel dispersing vessels without cover, working capacity max. 4000 ml
11052005 GS 100-5 Steel dispersing vessels without cover, working capacity max. 5000 ml
11052006 GS 100-6 Steel dispersing vessels without cover, working capacity max. 6000 ml
11052008 GS 100-8 Steel dispersing vessels without cover, working capacity max. 8000 ml
11052010 GS 100-10 Steel dispersing vessels without cover, working capacity max. 10000 ml
11052101 GS 100-1.C. Steel dispersing vessels with cover, working capacity max. 1000 ml
11052102 GS 100-2.C. Steel dispersing vessels with cover, working capacity max. 2000 ml
11052103 GS 100-3.C. Steel dispersing vessels with cover, working capacity max. 3000 ml
11052104 GS 100-4.C. Steel dispersing vessels with cover, working capacity max. 4000 ml
11052105 GS 100-5.C. Steel dispersing vessels with cover, working capacity max. 5000 ml
11052106 GS 100-6.C. Steel dispersing vessels with cover, working capacity max. 6000 ml
11052108 GS 100-8.C. Steel dispersing vessels with cover, working capacity max. 8000 ml
11052110 GS 100-10.C. Steel dispersing vessels with cover, working capacity max. 10000 ml

Technical data

Application volume (ml) min (water)0.1 ml
Application volume (ml) max (water)30'000 ml
Motor input power (W)1'700 W
speed range (rpm/min-1)26'500
supply voltage (V)230 V ± 10%, 50 Hz
supply voltage (V)110 - 120 V ± 10%, 60 Hz
InterfaceRS 232
Speed display (digital / scale)Digital
Speed display (digital / scale)stepless
Sound Level (dB A) (drive only at 25,000 min-1)82 (26'500) dBA
Relative humidity max. (%) Storage80 %
Relative humidity max. (%) Operating80 %
Operating ambient temperature (° C)0 bis 40 °C
Protection class according to DIN (IP)IP 20
Drive Dimensions (L x W x H)360 x 164 x 313
Weight (kg) only drive7.4 Kg
coupling typeF
StandardIEC/EN 61000-6-2 / EN 61000-6-3
Safety standardIEC/EN 61010-2-51

Applications

  • Creation of dispersions and emulsions
  • Dispersing of plant, human or animal tissue, resins and pigments
  • Solving of solid materials of higher viscosities as well
  • Creation of suspensions
  • For the formulation of lotions, creams and food
  • Oil-in-water (O/W) or water-in-oil (W/O) emulsions
  • Sample preparation for subsequent extraction of pharmaceutical agents (API)
  • From plant and animal tissue and for API dispersion in pharmaceutical products
  • Excellent for quality assurance and quality control
