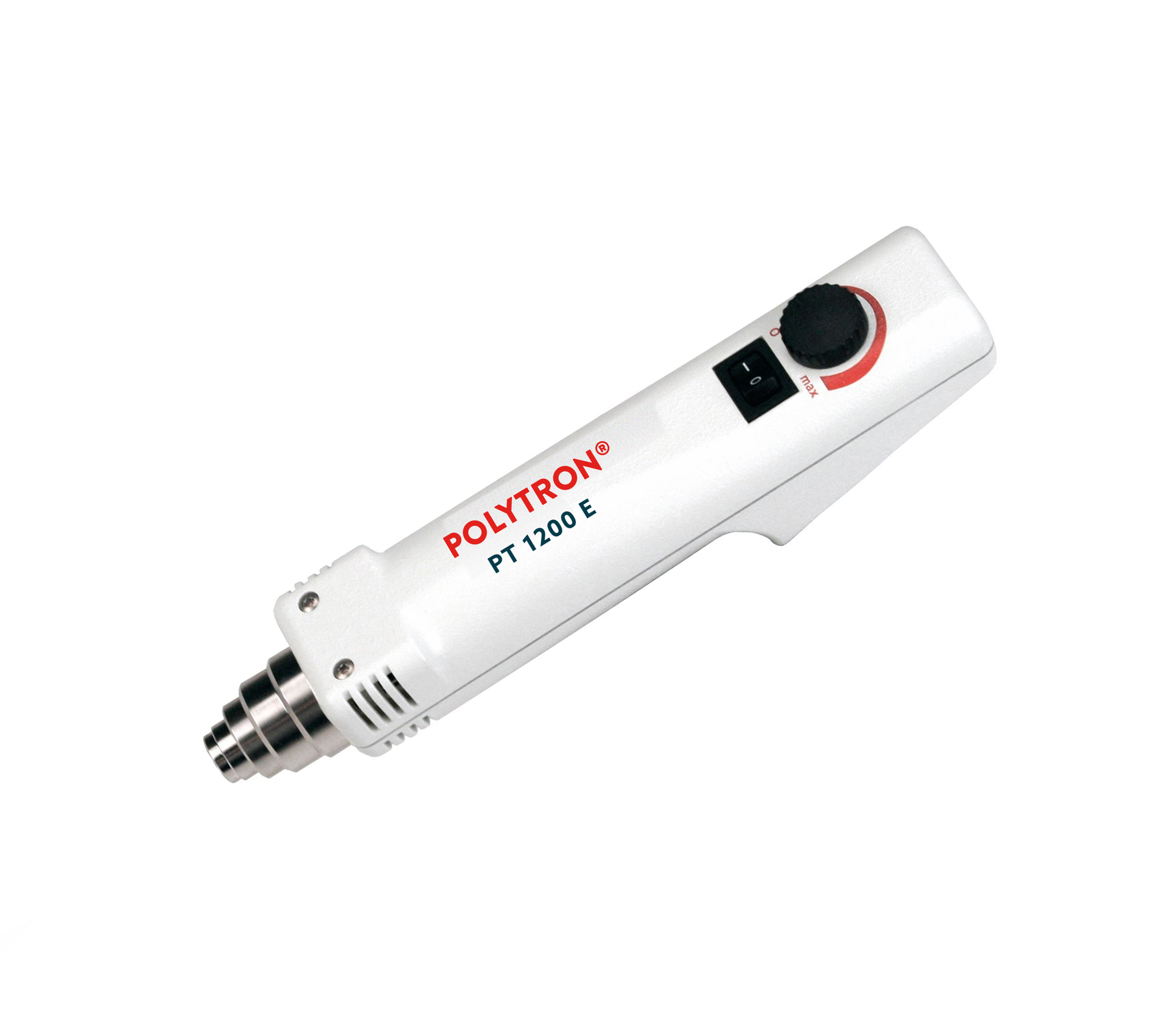

POLYTRON® PT 1200 E Manual Disperser (Ecoline)
Ergonomic Homogeniser
«Application volumes 0.05 - 250 ml»
- 인체공학적 호모게나이저는 가볍기 때문에 적은 양의 시료를 빠르게 처리하는데 이상적입니다.
- 광범위한 분산 응집체는 광범위한 시료 전처리 응용 분야에 적합합니다.
- PT1200E 휴대용 균질기는 소량의 시료와 부피를 빠르게 처리하는 데 이상적입니다.
- 인체 공학적 디자인과 가벼운 무게의 PT1200E는 최소한의 피로로 반복 사용이 쉽습니다.
- 원하는 경우 장치를 장착 할 수 있는 스탠드를 Option 구매하여 사용할 수 있으며 Carrying Case 를 구매하여 이동하실 수도 있습니다.
- 최대 250mL의 샘플에 대해 최소 직경 3mm의 다양한 Aggregate 를 장착 하여 사용이 가능합니다.
- 샘플 간 교차 오염이 우려되는 경우, 7mm 및 12mm 직경의 일회용 Aggregate 의 사용이 가능합니다.
- 우리 라인에 최근 추가 된 것 중 하나는 정제 균질화를 위해 특별히 설계된 PT-DA 20/2 X EC Aggregate 입니다.
*장점 :
- 안전 변압기가 있는 24V, 100W 저전압 모터
- 최대 25,000rpm의 아날로그 모터 속도 제어
- 최대 12m / s의 집계 팁 속도로 가능한 한 가장 미세한 입자 생성
- 소프트 스타트는 샘플 용기에서 균질 액이 튀는 것을 방지합니다.
- 과부하 보호를위한 온도 퓨즈
- 인체 공학적이고 사용자 친화적 인 디자인
- 한 손 퀵 릴리스 커플 링을 사용한 전체 교체 세척이 쉽고 다양한 용도에 적합한 aggregate 의 다양한 모델
*악세서리 : 카다로그 참조 (Aggregate + 스탠드 + Carrying Case 등)
11040006 Holder HS 1200 E
11040007 Stand ST-P13/320
*Dispersing-Aggregate
11030004 PT-DA 03/2EC-E050
11030012 PT-DA 05/2EC-E085
11030031 PT-DA 07/2EC-E107
11030062 PT-DA 12/2EC-E123
11030030 PT-DA 07/2SYN-E082 (1 Paket à 25 Stk.)
Technical data
Application volume (ml) min (water) | 0.05 ml |
Application volume (ml) max (water) | 250 ml |
Motor input power (W) | 100 W |
speed range (rpm/min-1) | stepless up to 25'000 |
Motor type | Universal-Motor |
supply voltage (V) | 90 - 250 V ± 10%, 50/60 Hz |
Speed display (digital / scale) | Analog scale |
Sound Level (dB A) (drive only at 25,000 min-1) | 65 dBA |
Relative humidity max. (%) Storage | 80 % |
Relative humidity max. (%) Operating | 80 % |
Operating ambient temperature (° C) | 0 to 40 °C |
Protection class according to DIN (IP) | IP 20 |
Drive Dimensions (L x W x H) | 220 x 44 x 55 |
Weight (kg) only drive | 0.44 Kg |
coupling type | E |
Standard | EN / IEC 61010, 61326-1 |
적용분야
- General homogenization applications (dispersion and emulsification)
- Homogenising of tumour tissue sample, for research of diverse tissue diseases
- Fast dissolving of pills, sugar-coated tablets for quality control purposes
- Sample preparation for subsequent extraction of pharmaceutical agents (API)
- Cell disruption, RNA / DNA isolation from tissue
- Dispersion of small quantities from plants, animals or human tissue
- Solving of solid materials
