Features

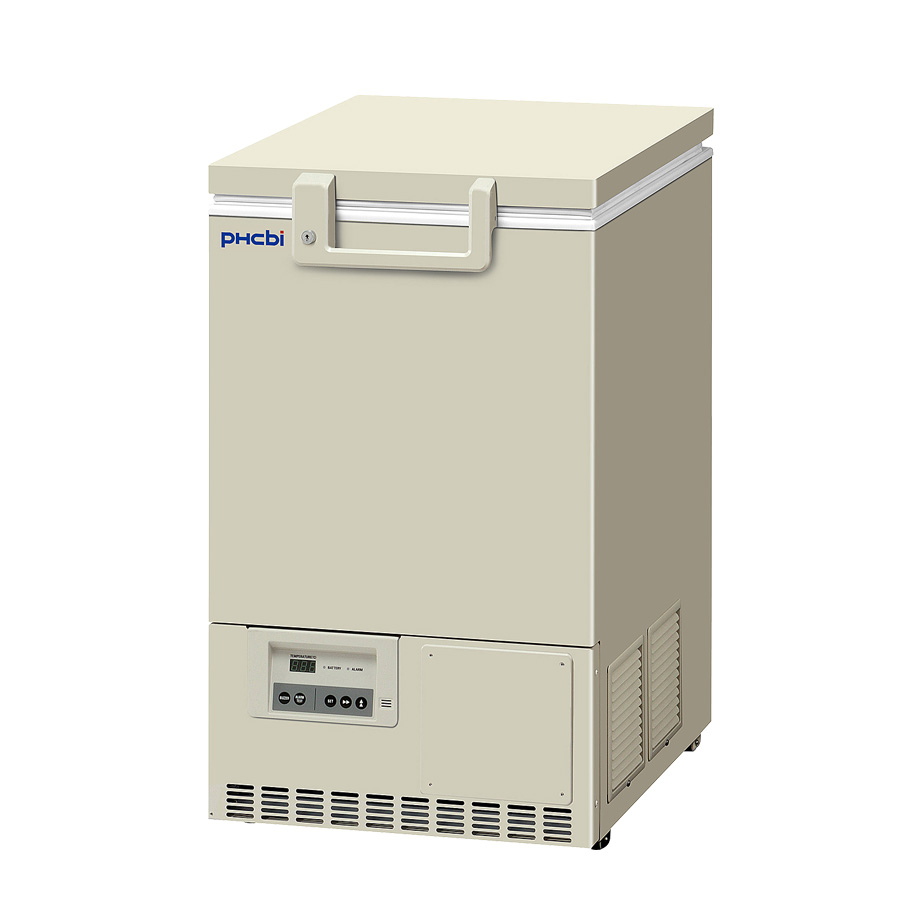

-80℃ 초저온 냉동고
최적의 풋프린트 내에서 뛰어난 신뢰성과 균일성
MDF-C8V1 VIP 초저온 냉동고는 VIP PLUS 기술을 사용하여 저장 용량을 극대화하는 이상적인 -80°C 냉동 환경입니다. 새로 개발된 단일 압축기 시스템은 더 높은 에너지 효율과 공간 절약형 구조를 달성합니다.
PHCbi의 초저온 냉동고용 단열 시스템 VIP PLUS는 기존 시스템에 비해 단열재 두께를 약 절반으로 줄일 수 있습니다.
특허받은 혁신적인 진공 단열 캐비닛 구조는 벽 두께를 줄이고 더 큰 저장 용량을 달성합니다. 전면, 좌, 우 측면에 VIP PLUS 소재를 사용하여 설치 공간을 최소화하여 설치 면적 대비 수납력이 뛰어납니다.
장점
- 개인용 크기의 궁극기 냉동고
- 사용자 친화적인 무필터 설계: 세척이 필요 없음
- 조용한 작동
- PHCbi가 설계한 냉동 시스템은 최고 수준의 성능과 신뢰성을 보장
- VIP 단열재로 저장 용량 극대화
Specifications
External Dimensions (W x D x H) | 550 x 685 x 945 mm |
Internal Dimensions (W x D x H) | 405 x 490 x 425 mm |
Volume | 84 litres |
Net Weight | 67 kg |
Capacity (2” Boxes in Stainless Steel Racks) | 42 (2” boxes) |
Capacity (3” Boxes in Stainless Steel Racks) | - |
Cooling Performance | -80 °C |
Temperature Setting Range | -55 to -90 °C |
Temperature Control Range | -60 to -80 °C |
Controller | Microprocessor, non-volatile memory |
Display | LED |
Temperature Sensor | Pt-1000 |
Refrigeration System | Auto-cascade |
Compressors | 400 W |
Refrigerant | |
Insulation Material | PUF / VIP Plus |
Insulation Thickness | 70 mm |
Exterior Material | Painted Steel |
Interior Material | Stainless Steel |
Outer Doors/Lid | 1 |
Outer Door Lock | Y |
Inner Doors/Lid | 1 (Styrofoam) |
Shelves | |
Max. Load - Per Shelf | - |
Max. Load - Total | - |
Vacuum Release Port | - |
Access Port | 2 |
Access Port Position | Back/Bottom |
Access Port Diameter | 17 |
Casters | 4 (2 leveling feet) |
Power Failure | V-B-R |
High Temperature | V-B-R |
Low Temperature | V-B-R |
Filter | Filterless design |
Door Open | V-B |
Power Supply | Local |
Frequency | Local |
Noise Level | 47 dB [A] |
Accessories
Small inner door kit | MDF-7ID (Max 2) |
Temperature recorders | |
-Circular type | MTR-G85 |
-Continuous strip type | MTR-85H |
-Recorder housing (if required) | MDF-S3085 |
RS485 interface module | MTR-480 |
Liquid N2 Back-up | CVK-UB4 |

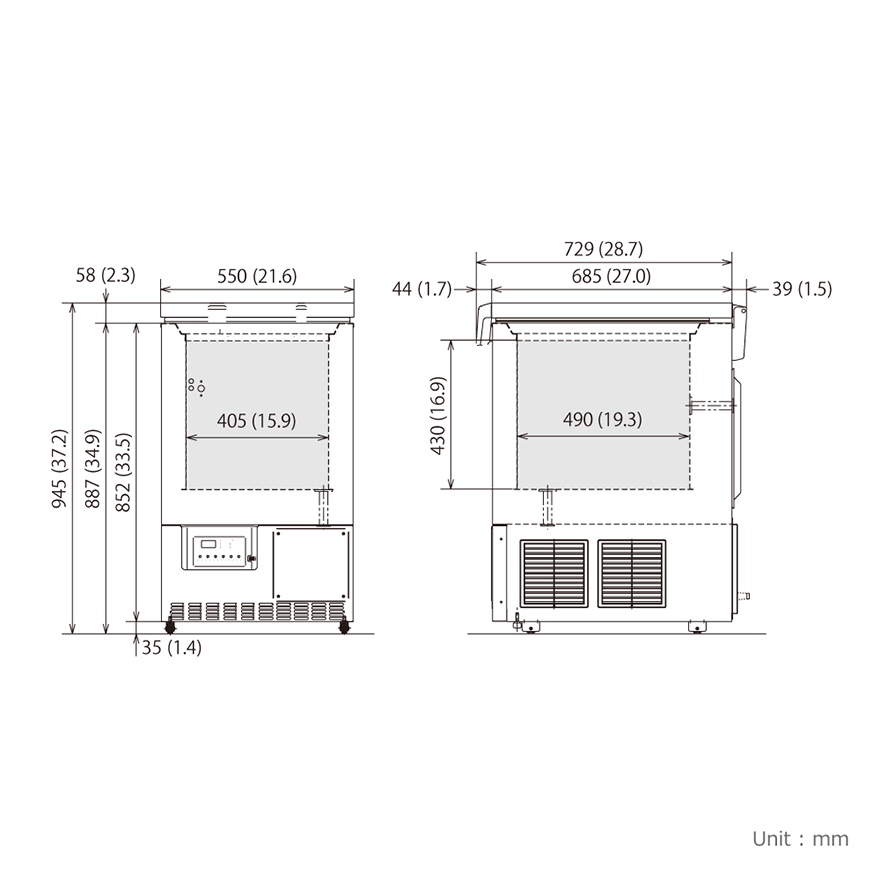

Dimensions
Options
MDF-DU702VX
1MDF-DU502VX
